Analog I O module DIO32-L

CANopenRS-485

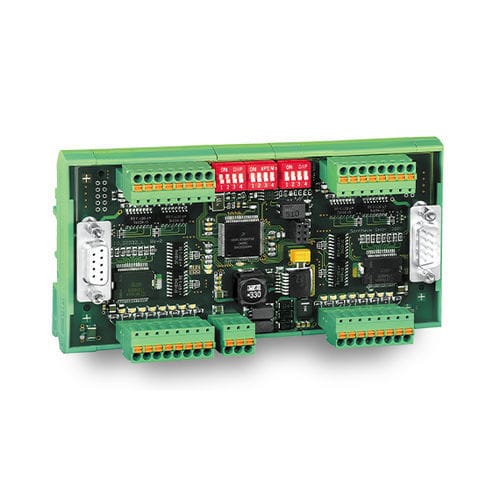

The module impresses with its compact and comfortable design, which provides all in­ter­faces, LEDs and required switches on the front panel. A further feature is the integrated top hat rail mount­ing, which allows easy installation and re­moval. LEDs and switches The visualization of the current IO states is done via integrated LEDs for each IO. The configuration of the module address and baud rate is done easily and safely via DIP switches on the module. Ac­cor­ding to CiA definition, a baud rate of up to 1 Mbit/s can be set. In- and outputs The 24 V inputs and outputs are opto-isolated and short-circuit proof, making DIO32-L reliable and fail-safe. The wide input voltage range from 12 V DC to 30 V DC opens up a wide range of ap­pli­ca­tions for the module. Signal processing In addition to the inputs and outputs, the DIO32-L has a powerful microcontroller that handles the acquisition of the sensors, the control of the act­u­a­tors and the CAN protocol. In addition, safety mechanisms such as guar­ding are also fully in­te­gra­ted in the Remote IO. The visualization of the current IO states is done via integrated LEDs for each IO. The con­fi­gur­ation of the module address and baud rate is done easily and safely via DIP switches on the module. Accor­ding to CiA definition, a baud rate of up to 1 Mbit/s can be set. CAN interface The integrated CAN interface in accordance with CANopen (DS 301 and 401) allows flex­ible use at dif­ferent points and positions in the pro­duc­tion process. It is designed accor­ding to ISO 11898 and can be bridged. In this way, several modules can be used in series by looping through the CAN signals.
