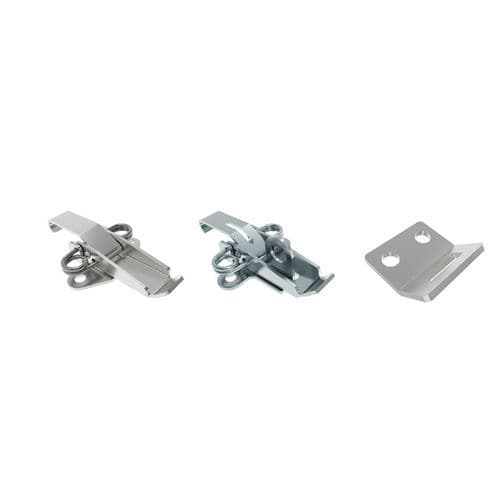

Stainless steel draw latch V series

spring

V2/V3/V4 - Versa-Latch Series Draw Latches The Versa-Latch design incorporates an external torsion spring to accommodate dimensional irregularities between panel and frame in applications where the latch and keeper remain on the same plane. This built-in variation accounts for irregularities or changes in panel or gasket fit over time. FEATURES AND BENEFITS Multiple latch sizes, available in multiple materials, accommodate the same amount of application variances between frame and panel. Spring loaded anchor plate compensates up to 2.3 mm (.09") for irregularities in sealing and gasket set A wide range of latch sizes permits a broad range of latch to keeper mounting dimensions Security options available for locking or tamper evident protection Some models available in stainless steel AVAILABLE OPTIONS Padlockable option available in small, short blade style Wire sealing option available in small, short blade style
