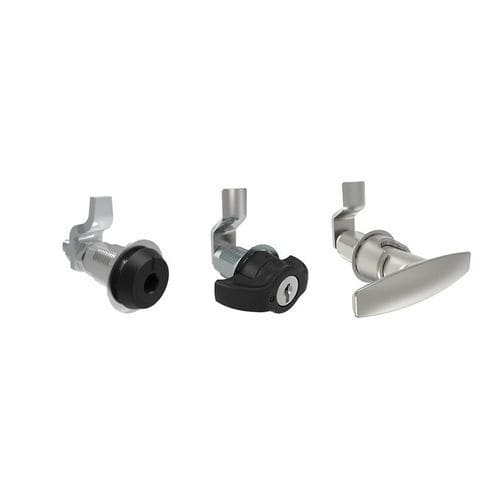

Cam latch E3 series

compressionkeyedstainless steel

Product overview

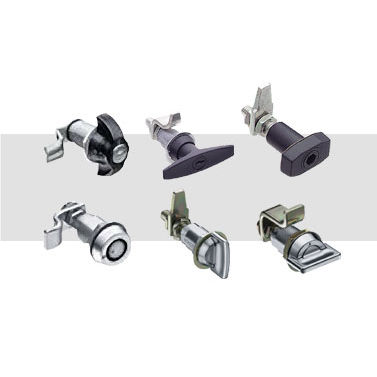

Southco’s VISE ACTION® E3 compression latches provide mechanical advantage to ensure tight, vibration-resistant door and panel closure for environmental sealing in demanding industrial applications. The VISE ACTION® mechanism aligns the cam behind the frame and, with a single continuous half-turn, draws the cam straight up to provide a consistent 6.4 mm (0.25 in) pull-up for gasketed sealing, reduce noise and prevent scraping. Over-center latching resists accidental opening from shock or vibration.

Features and benefits

• Consistent 6.4 mm (0.25 in) pull-up for reliable environmental sealing
• Simple half-turn actuation for fast, repeatable closure
• Reduces vibration-induced noise and rattles
• Over-center latching secures against accidental opening
• Cam alignment prevents scraping and ensures smooth operation

Available options

• Materials: zinc alloy, stainless steel, aluminum (others on request)
• Finishes: powder coat, chrome plating, electropolish, passivation, anodizing, plating
• Fixed and adjustable grips; clockwise and counter-clockwise actuation
• Head styles: tubular key, hand, key-locking, padlockable, T-handle, wing, knob, hex, slotted, square, triangular
• Custom sizes, mounting styles and industry-specific compliance (sealing, vibration, fire, hygiene)
• Accessories: cams, flange gaskets, sealing covers, flush mounting brackets, keys, padlock brackets, pull tabs

Standards and certifications

• RoHS compliance
• NEMA / IP ratings (IP65, IP66, IP67, IP69K depending on variant)
• EN45545 (fire) options
• EN61373 (vibration) tested options
• UL listings available for specific models

Typical variants and accessories

• E3 VISE ACTION® compression latch, large size, tubular key, zinc alloy, powder coated black (example)
• E3 VISE ACTION® compression latch, large size, T-handle, zinc alloy, powder coated black (example)
• Stainless steel cams and spare parts
• Flange gaskets and sealing covers (various elastomers)
• Keys and coded key options

Technical specifications

• Compression (pull-up): consistent 6.4 mm (0.25 in)
• Actuation: single continuous half-turn with over-center latching
• Materials: zinc alloy, stainless steel, aluminum (additional materials available)
• Finishes: powder coat, chrome plating, electropolish, passivation, nickel, zinc plate, anodized, galvanized, natural
• Head styles and drives: tubular key, hex (4 mm, 8 mm), slotted, square, triangular, T-handle, knob, wing
• Grip types: fixed and adjustable
• Mounting: flush, single-hole, three-hole, clip-in options
• Ingress protection: IP65–IP69K depending on variant and sealing
• Vibration/shock resistance: EN61373 where specified
• Latching points: single or three-point options
• Accessories: cams, flange gaskets, flush cups, mounting brackets, keys, padlock brackets, pull tabs
