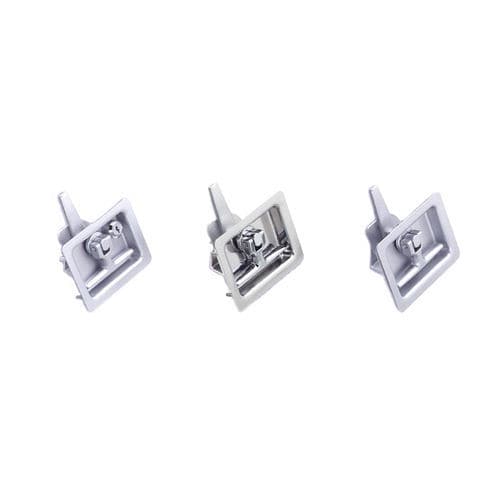

Cam latch 24 series

compressionlockstainless steel

Rugged design and construction make these latches well suited for use in industrial applications and off-highway vehicles. The convenient handhold afforded by their folding T-handles is complemented by sleek, flush-mount design and hidden mounting hardware. FEATURES AND BENEFITS The common rectangular mounting cup styling and T-handle operation of this latch family is enhanced with a series of grip, compression, and locking choices that enable you to match your unique application requirements. Folding T-handle provides ample grip for actuation, even when wearing protective gloves "Fixed-grip" style provides consistent compression when T-handle is folded down, that fixed grip dimension can be determined by user adjustment of jam nuts holding pawl "Adjustable grip" style enables user to take additional turns on handle after pawl is engaged, in order to create additional compression for a tighter grip or to compress a gasket Available in Type "A" (clockwise latching), and Type "B" (counterclockwise latching) styles Available Options Available in steel or stainless steel cup Available with integral threaded mounting studs or as weld-on style Keylocking versions available Available with neoprene gasketed shaft and cup flange for dust and moisture sealed installation Adaptable to multi-point latching
