Cam latch 49

stainless steel

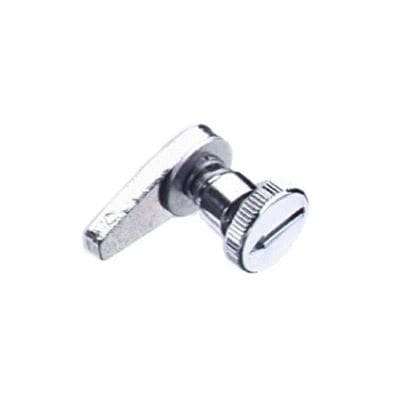

Here's one of our simplest cam latch options. A bright chrome-plated knob with serrated edges provides a classy looking finish that's easy to grip and operate. Straight pawl design uses spacers to adjust grip dimension. Built-in spring tension ensures snug fit Features And Benefits Single compact size installs quickly, using a single screw to attach the pawl to the knob stud after grip adjustment. Installs in panels from 1 mm (.04") to 8 mm (.32") Arrow on chrome plated actuator knob indicates pawl position Internal spring provides additional tension to provide snug grip of pawl behind frame Installs quickly in single round hole Available Options Latch is shipped with 5 spacer washers to give end user up to 7.9 mm (.312") of grip adjustment Standards and Certifications Maximum working load of 220 N (50 lbs.) Addition of spacer washers enables quick grip adjustment from 0 mm (.00") to 7.9 mm (.312") To search for a product certifications by part number, click here:
