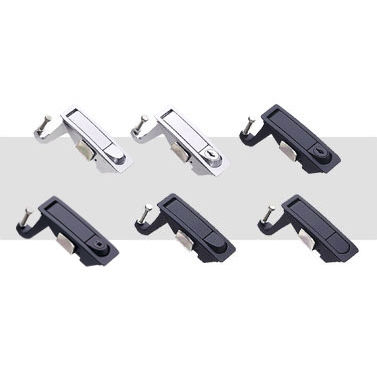

Lever-operated latch C2

key lockstainless steelflush

Overview

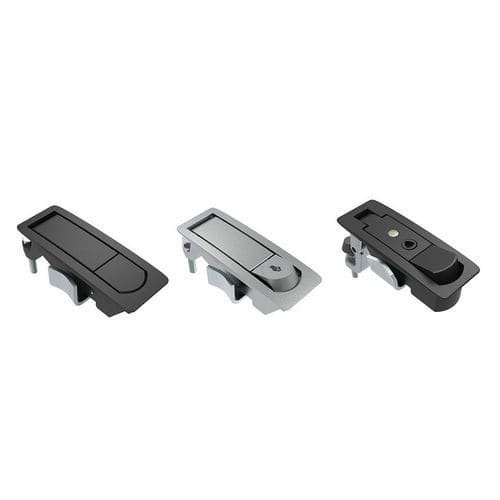

C2 compression lever latches provide low-profile, push-button actuation for doors and panels. Compressive action draws the door tight without rubbing or wear at the latch contact point, and flush or raised trigger styles control protrusion and ease of use.

Features and Benefits

• Compressive action pulls door or panel tight without rubbing or wear on latch contact point or frame.
• Broad grip range, up to 23 mm, allows easy adjustment to accommodate changes over time; other variants offer extended ranges.
• Flush trigger models minimize protrusion for a smooth surface; raised trigger models provide easier actuation.
• Locking variants provide key or tool access for enhanced security.
• Sealed variants suitable for NEMA 4 / IP65 environments.
• Quick installation—many variants install using a single screw.

Available Options

• Finishes: matte black powder coat; textured chrome (chrome plated, textured).
• Actuation styles: flush trigger and raised trigger.
• Security/access options: key locking, tool access, various locking styles and key choices.
• Optional rubber bumper to reduce vibration, wear and noise.
• Color-coded visual indicator option to show latch open status.

Standards and Certifications

• Sealed versions suitable for NEMA 4 and IP65 applications.

Product Media

• Series-level product videos available for the C2 lever latches.
• Catalog and literature (series-level PDF) available.

Technical specifications

• Series name: C2.
• Operation: push-button actuation; compressive (compression) action.
• Maximum documented grip range: up to 23 mm (0.91 in); other variants provide extended ranges.
• Typical panel thickness options: 1–5 mm and 1–8 mm (varies by part number).
• Materials: zinc alloy (typical); some components in nylon or rubber depending on variant.
• Finish options: powder coat (black), chrome plated textured.
• Sealing: sealed variants meet NEMA 4 / IP65 suitability.
• Installation: designed for quick installation (some variants install with a single screw).
• Available accessories: rubber bumper, keys for locking variants, visual indicators.
