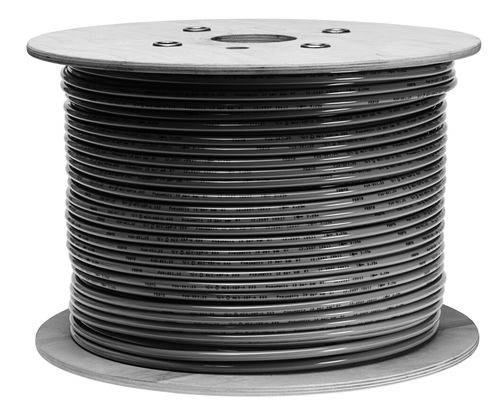

Pneumatic hose PUN series

for compressed airplasticindustrial

Product overview
Festo PUN series plastic and DUO pneumatic tubing for industrial pneumatic systems. Outer diameter range 3–10 mm, pressure rating -0.95 to 10 bar, temperature capability -35°C to 60°C. Suitable for general pneumatic distribution and automated equipment requiring plastic or DUO construction.

Available tubing types

• DUO tubing
• Plastic tubing

Available outer diameters (from product range)

• 3 mm
• 4 mm
• 6 mm
• 8 mm
• 10 mm

Available colours

• Black
• Silver
• Black/Silver

Product table
PUN-6X1-DUO-BS | DUO tubing | 6 mm | 4 mm | 1 mm | -0.95 to 10 bar | Black/Silver
PUN-4X0,75-DUO-BS | DUO tubing | 4 mm | 2.6 mm | 0.75 mm | -0.95 to 10 bar | Black/Silver
PUN-4X0,75-DUO-SI | DUO tubing | 4 mm | 2.6 mm | 0.75 mm | -0.95 to 10 bar | Silver
PUN-6X1-DUO-SI | DUO tubing | 6 mm | 4 mm | 1 mm | -0.95 to 10 bar | Silver
PUN-8X1,25-DUO-BS | DUO tubing | 8 mm | 5.7 mm | 1.25 mm | -0.95 to 10 bar | Black/Silver
PUN-10X1,5-DUO-SI | DUO tubing | 10 mm | 7 mm | 1.5 mm | -0.95 to 10 bar | Silver
PUN-3X0,5-SW | Plastic tubing | 3 mm | 2.1 mm | 0.5 mm | -0.95 to 10 bar | Black
PUN-3X0,5-SW-500 | Plastic tubing | 3 mm | 2.1 mm | 0.5 mm | -0.95 to 10 bar | Black

Notes
Range includes both plastic and DUO constructions. Pressure rating across the listed SKUs is -0.95 to 10 bar. Series temperature capability: -35°C to 60°C.

Technical specifications

• Manufacturer: Festo
• Series: PUN series
• Product types: DUO tubing, Plastic tubing
• Outer diameter range: 3 mm to 10 mm
• Inner diameter range (from table): 2.1 mm to 7 mm
• Wall thickness range (from table): 0.5 mm to 1.5 mm
• Pressure range: -0.95 to 10 bar
• Temperature range: -35°C to 60°C
• Available colours: Black, Silver, Black/Silver
• Number of listed SKUs on page: 8
