Rotary vane vacuum pump 10F
lubricatedsingle-stageATEX

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
ATEX, cast iron, adjustable
Ultimate vacuum

66 mbar
(0.96 psi)

Flow rate

10.2 m³/h
(360.21 ft³/h)

Power

0.4 kW
(0.54 hp)

Noise level

68 dB

Weight

17 kg
(37.48 lb)

Description

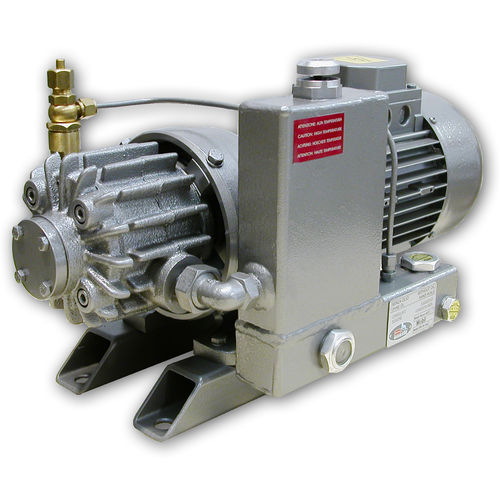

Cast iron pumping unit coupled directly to the electric motor via an elastic coupler. Oil tank with capillaries and adjustable lubrication drippers. Steel oil/air separator eliminates oil mist discharge, air cooling. Accessories: Air filter, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid Special voltages: on demand Special versions: total oil loss lubrication Certifications on request: ATEX
