Rotary vane vacuum pump 24 PB3oil-filledtwo-stagegas
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-filled
- Number of stages
- two-stage
- Applications
- for the chemical industry, suction, gas
- Other characteristics
- compact
- Ultimate vacuum
0.04 mbar
(0 psi)- Flow rate
24 m³/h, 28.8 m³/h
(847.55 ft³/h, 1,017.06 ft³/h)- Power
0.75 kW, 1.1 kW
(1.02 hp, 1.5 hp)- Noise level
58 dB
- Weight
35 kg
(77.16 lb)
Description

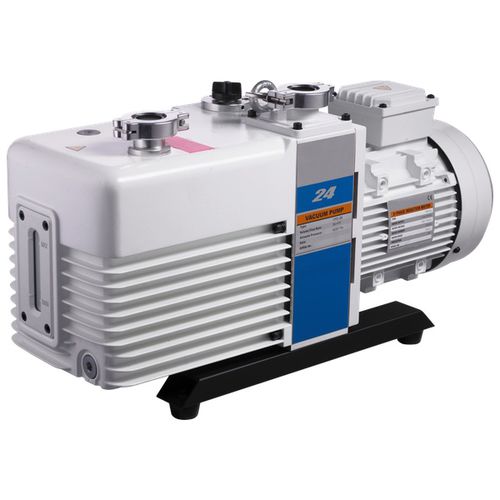

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories:
air filter, external oil separator filter, vacuum gauge.
