XYZ positioning stage 782300:148.26

linear motor-driven3-axis

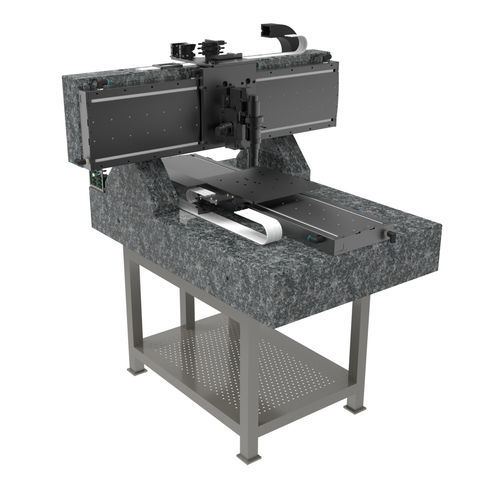

This inspection system (shown here without cover) is specially designed for automated quality assurance. The positioning system allows positioning along two linear axes. A high-resolution camera or sensor is moved relative to the sample to inspect geometries, perform measurements and document special quality features. The system is controlled by a separate motion controller for three axes. Automated and low-maintenance 24/7 inspection • Simultaneous inspection by travels up to 820 mm • Reduced cycle time with speeds up to 150 mm/s and accelerations of 2 m/s2 • Precise measurement results and enormous quality improvements with repeatability up to 1 µm • Low-maintenance 24/7 operation and flexible maintenance concept due to fast system exchange on the granite structure Optionally expandable: • Various travels up to 720 mm • Version for clean room ISO 14644-1 (up to class 1 on request) • Optionally with motorized Z-axis • Connections for dust extraction and rotating belt covers • With/without frame and base plate made of granite or aluminum • Integration into the customer specific application • Immediate use with pre-configured controller incl. exemplary software
