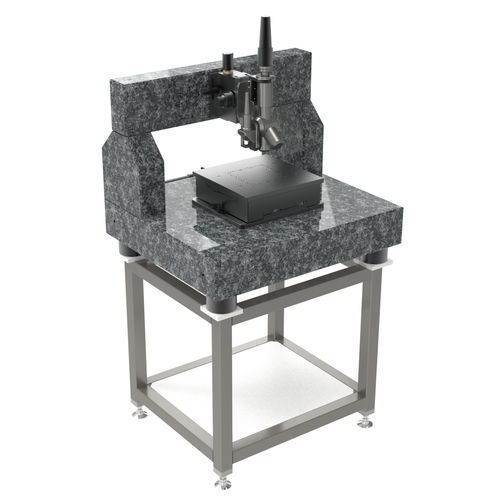

XYZ positioning system 782489:001.26

automaticfor laboratory applicationswith DC motor

High-precision inspection system for versatile measuring tasks This 3-axis positioning system is designed for high-precision metrology applications where the stage moves the object to be measured to the sensor or camera on the Z-axis. The xy stage consists of the reliable KT310 with a DC motor design. Its concept with internal motors, cross roller guides and high-precision ball screws enables excellent precision with optimum use of the installation space. Highly precise and consistent measurement results • Ideal for automated sample inspection • High precision repeatability up to 0.3 µm • Reduction of measurement deviations to less than 3 µm Optionally expandable: • Various travels up to 200 mm • With/without granite base • With/without vibration decoupling • Stepper motor, DC motor and in various measuring system resolutions • Motorized Z-axis e.g. with MT130 or PMT 160 • Rotatory movements in combination with DT200 • Versions for clean room ISO 14644-1 (up to class 1 on request) • Ready-to-use control with pre-configured controller incl. sample software
