Manual drum lifter DTC01

hand-operatedspringstainless steel

Overview

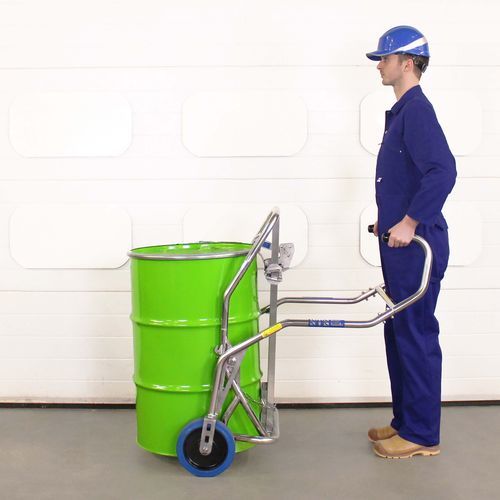

The Drum Lifting Trolley DTC01 is engineered for safe, ergonomic handling and transport of steel, plastic and fibreboard drums from 50–220 L. Its geometry locates the wheels beneath the load to place the drum centre of gravity over the wheels, minimising operator effort and maximising stability. Constructed in corrosion-resistant 304-grade stainless steel, the unit is suitable for demanding industrial environments and offers an ATEX-certified option for hazardous areas.

Key features

• Wheel geometry positions wheels directly under the load to reduce required input force.
• Low manual effort: typical input force under 20 kg.
• Universal, fully adjustable rim catch with multiple hook positions for broad drum compatibility.
• Vertical height adjustment via a spring-loaded sliding catch mechanism; simple, repeatable adjustment.
• 304-grade stainless-steel construction for corrosion resistance and extended service life.
• Optional ATEX version (DTC01-Ex) providing electrical continuity and grounding for use in classified zones.

Drum compatibility

• Handles drums from 50 to 220 L
• Steel open-top drums
• Steel tight-head drums
• L-ring plastic drums
• MAUSER plastic drums
• Fibreboard drums

Adjustability and ergonomics
The adjustable rim catch allows vertical movement and multiple hook positions to suit different drum heights and rim profiles. Adjustment is performed by repositioning a pin for reliable, repeatable settings. The trolley’s wheel placement and geometry reduce operator effort and improve control during lifting and transport.

ATEX / Hazardous area option
Available as a fully certified ATEX model (DTC01-Ex) for gas and dust zones 1, 2, 21 and 22. The ATEX variant is manufactured to ensure electrical continuity and provide a path to ground; supplied with a Manufacturer’s Declaration of Conformity to relevant standards.

Awards and reliability
Recognised for safety and innovation, the DTC01 has received industry awards. Built from premium materials and engineered for long life, many early units remain in service in industrial applications.

Documentation
Technical specification and operating manual are provided as formal documents accompanying the product (technical specification PDF and instruction manual available separately).

Technical specifications

• Model: DTC01
• Rated capacity: 350 kg
• Drum sizes handled: 50–220 L
• Drum height range (catch adjustment): approx. 380–1000 mm
• Manual force required to operate: typically under 20 kg
• Unladen weight: 25 kg
• Ground clearance (maximum): 70 mm
• Key dimensions: Length 1265 mm (deployed with 205 L drum); Width 808 mm
• Construction material: 304-grade stainless steel
• Compatibility: steel open-top, steel tight-head, L-ring plastic, MAUSER plastic, fibreboard drums
• Special options: ATEX-certified DTC01-Ex for Zones 1, 2, 21 and 22
