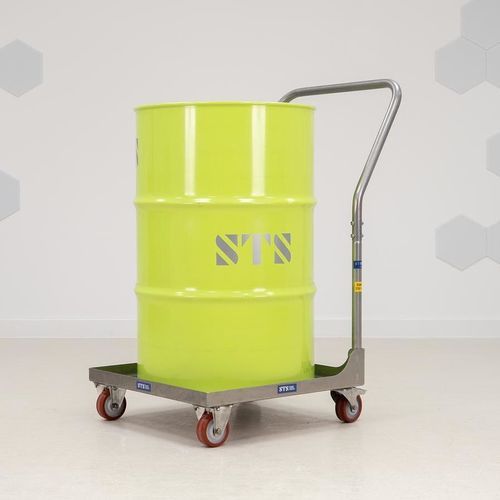

Circular dolly DDL200-SS

heavy-dutymetalfor drums

Overview
This 304-grade stainless steel drum dolly with fixed handle is designed to move drums up to 220 L (max. 600 mm diameter) in industrial, food and pharmaceutical environments, including GMP cleanrooms. Corrosion‑resistant construction and vibratory‑polished finish support hygienic handling.

Key features

• 304-grade stainless steel construction for corrosion resistance and hygienic use
• Compact wheelbase with low-profile 100 mm castors (fixed front, braked rear) for manoeuvring in confined spaces
• Integrated 45 mm drip tray to contain small spills; fully seam-welded tray for durability
• Precision bearings and long-lasting wheels for low rolling resistance
• Fixed ergonomic push/pull handle positioned at 1120 mm height
• Rated capacity 350 kg; suitable for drums up to 220 L (600 mm diameter)
• Optional ATEX version with anti-static tyres and earthing chains for hazardous zones

Design & materials

• Construction: 304-grade stainless steel
• Surface finish: Vibratory polished stainless steel
• Manufacturing: CNC brake-press folding and fully seam-welded tray

Performance & use

• Suitable for all drums up to 220 L (max. 600 mm diameter)
• Rated capacity: 350 kg
• Manual operating force: <10 kg
• Wheel diameter: 100 mm; drip tray height: 45 mm; handle height: 1120 mm
• Ideal for food, pharmaceutical and GMP cleanroom environments

ATEX / hazardous area option

• Certified ATEX model available for Zones 1, 2, 21 and 22
• ATEX version includes anti-static wheels, earthing chains and a manufacturer’s Declaration of Conformity
• Designed to ensure an electrical grounding path is present

Included documents

• Technical specification (detailed weight, dimensions and load capacity)
• Instruction manual with safe operation and maintenance guidance

Technical specifications

• Rated capacity: 350 kg
• Drum compatibility: up to 220 L (600 mm diameter)
• Manual force: <10 kg
• Construction: 304-grade stainless steel
• Surface finish: Vibratory polished
• Wheel arrangement: fixed front wheels; braked rear castors
• Wheel spec: nylon-centred wheels with polyurethane tyres and precision bearings
• Overall width (example): 640 mm
• Drip tray height: 45 mm
• Wheel diameter: 100 mm
• Handle height: 1120 mm
• Designed lifespan: 20+ years
• Compliance: CE / UKCA
