Metal dolly DDL01-SS

for drumsfor transport

Overview

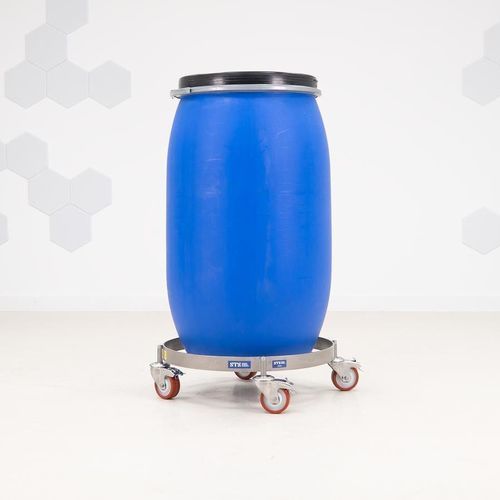

This stainless steel drum dolly (models DTC01 / DDL01-SS) is engineered for safe movement and temporary storage of steel, plastic and fibre drums. Constructed in 304-grade stainless steel with TIP‑TIG welded joints and a vibratory‑polished finish, the dolly is suitable for production areas, cleanrooms and GMP environments where corrosion resistance and hygienic surfaces are required.

Key features

• 304-grade stainless steel construction for corrosion resistance and cleanroom compatibility
• TIP‑TIG welded and vibratory‑polished finish for a hygienic surface
• Rated capacity 350 kg; compatible with 160–220 L drums (450–600 mm diameter)
• Compact wheelbase and low profile for stability and space-efficient storage
• Four braked stainless steel swivel castors for secure parking and manoeuvring
• Nylon-centred wheels with polyurethane tyres and precision bearings (100 mm diameter) for low rolling resistance
• Typical manual operating force: less than 10 kg (typical depending on floor and load)
• Optional ATEX-certified version with anti-static tyres and earthing chains for Zones 1, 2, 21 and 22
• Designed for use with drum tippers and drum lifters to ensure safe, centred loading/unloading

Applications
Designed for ergonomic handling, transport and short-term storage of drums in industrial production, warehousing, pharmaceutical and food processing areas. Suitable where corrosion resistance, easy cleaning and compliance with GMP/cleanroom practices are required.

Accessories & upgrades

• ATEX variant: anti-static tyres, earthing chains and manufacturer’s Declaration of Conformity for zoned hazardous areas
• Compatibility with standard drum tippers and drum lifters for controlled placement
• Optional drip tray available on request for spill containment during storage

Technical specifications

• Rated capacity: 350 kg
• Drum compatibility: steel and plastic drums 160–220 L (450–600 mm diameter)
• Manual force required to operate: < 10 kg (typical)
• Construction: stainless steel, 304-grade; TIP‑TIG welded
• Surface finish: vibratory‑polished stainless steel
• Overall width: 716 mm
• Wheel arrangement: four braked stainless steel swivel castors
• Wheel specification: nylon-centred wheels with polyurethane tyres and precision bearings (100 mm diameter)
• Expected service life: 20+ years (application dependent)
• Compliance: CE / UKCA
• ATEX option: certified for Zones 1, 2, 21 and 22 (anti-static tyres and earthing chains)
