Manual lifting device DTP03-250kg-R500-CA10

battery-poweredelectro-hydraulichydraulic

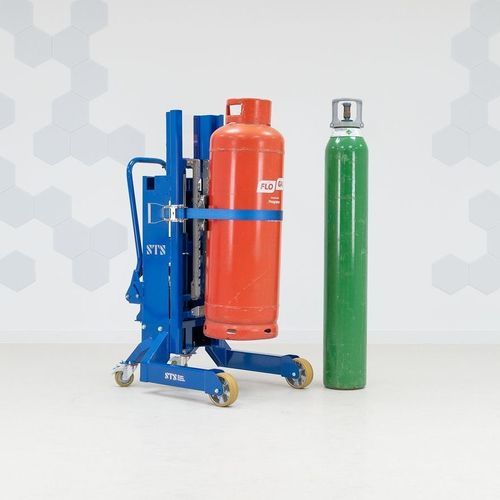

Overview Compact hydraulic lifter DTP03-250kg-R500-CA10 designed to safely handle gas cylinders up to 250 kg. A manual 17 cc aluminium hydraulic pump raises the central ram to provide a lift clearance of 450 mm and a lift stroke of 500 mm. Cylinders are secured by a CA10 ratchet-and-strap clamp paired with a rubber V-pad for secure grip during transport and positioning.

Key features

• Cylinder securing V-pad with rubber support and adjustable CA10 ratchet & strap for diameters 180–450 mm
• Manual 17 cc aluminium hydraulic pump feeding a central lifting ram; hand-operated lowering valve for controlled descent
• Rear wheel steering using the pump handle as a tiller for easy rotation and positioning
• Low operator effort (<10 kg) and compact footprint
• ATEX/UKEX version available for use in Zones 1, 2, 21 and 22
• Optional upgrades: ATEX package, integrated load-cell weigh scale, electric-hydraulic lift, stainless-steel construction, tall-lift ram

Specification (table) Safe working load (SWL): 250 kg
Leg design: 500 mm internal straddle; 710 mm maximum width
CA10 securing clamp: Adjustable ratchet & strap for cylinder diameters 180–450 mm
Lift stroke: 500 mm
Lift clearance: 450 mm
Lifting system: Manual 17 cc hydraulic pump with lowering valve
Guarding: Shatterproof clear polycarbonate (standard); anti-static variant for ATEX model
Metal preparation: Grit-blasted mild steel; vibro-polished stainless-steel parts available
Surface finish: Primer and polyester powder coat (mild steel); smooth clean finish for stainless steel
Unit colour: RAL 5010 (blue)
Front wheels: Two fixed 160 mm wheels, aluminium-centred, polyurethane tyres
Rear wheels: Two braked 100 mm castors, aluminium-centred, polyurethane tyres
Compliance: CE / UKCA (standard); ATEX / UKEX (Zones 1, 2, 21, 22) for Ex models

Benefits

• Eliminates manual lifting of heavy cylinders, reducing operator injury risk
• Adjustable securing and compact design improve handling in confined industrial spaces
• Low maintenance design with long expected service life

Technical specifications

• Safe working load (SWL): 250 kg
• Cylinder diameter range: 180–450 mm
• Leg design: 500 mm internal straddle; 710 mm maximum width
• Lift stroke: 500 mm
• Lift clearance: 450 mm
• Lifting system: Manual 17 cc hydraulic pump with lowering valve
• Securing: CA10 ratchet & strap clamp with rubber V-pad
• Guarding: Shatterproof clear polycarbonate (anti-static for ATEX model)
• Wheels: Front fixed 160 mm (aluminium-centred, polyurethane tyres); rear two braked castors 100 mm (aluminium-centred, polyurethane tyres)
• Surface finish & metal prep: Grit-blasted mild steel with primer and polyester powder coat; vibro-polished stainless-steel parts available
• Optional upgrades: ATEX package; integrated load-cell weigh scale (accuracy ±0.1 kg); push-button electric-hydraulic lift (battery powered); 304 stainless-steel model; tall-lift 760 mm ram
• Compliance: CE / UKCA; ATEX / UKEX documentation and Declaration of Conformity supplied for Ex models (Zones 1, 2, 21, 22)
