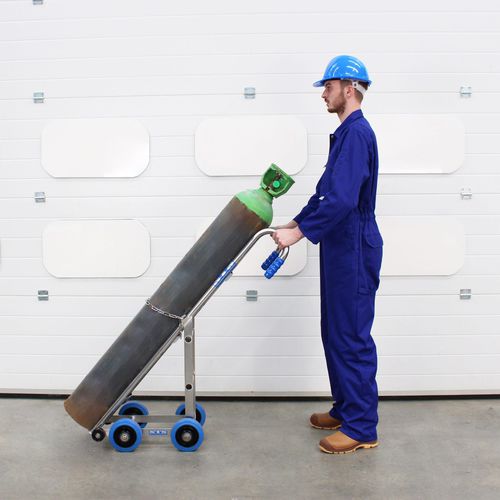

Gas bottle hand truck CTS01

stainless steel

Overview
Designed to transport gas cylinders and bottles in industrial and commercial workplaces, the CTS01 trolley enables operators to move cylinders safely with reduced manual effort. A certified ATEX version is available for use in explosive atmospheres.

Features

• 304 stainless-steel construction: corrosion-resistant and easy to clean.
• Four-wheeled layout with two small front roller wheels: main wheels carry the cylinder weight; front rollers assist vertical loading and negotiating steps.
• Safety chain to secure the cylinder during transport.
• ATEX option (CTS01-Ex): earthing/continuity design for zones 1, 2, 21 and 22.
• Low manual force required: typical operating force <15 kg.
• Low‑maintenance design suitable for frequent industrial use.

Upgrades and options

• CTS01-Ex: ATEX-certified variant supplied with Declaration of Conformity for explosive zones 1, 2, 21 and 22.
• CTS02 (lifting wires): wire-rope lifting sling option for overhead crane or hoist lifting to platforms or mezzanines.

Technical specifications

• Rated capacity: 150 kg.
• Maximum cylinder height: 1600 mm.
• Supported cylinder diameters: 190–250 mm.
• Manual force required to operate: <15 kg (marketing: <20 kg).
• Standard wheels (CTS01): plastic-centred 160 mm wheels with elastic rubber tyres and precision bearings.
• Front wheels (standard): 65 mm nylon front wheels for vertical loading.
• CTS01-Ex wheels: aluminium-centred 160 mm wheels with conductive elastic rubber tyres (ensures electrical continuity/earthing).
• Can negotiate steps and door sills.
• Compliance: CE / UKCA. ATEX / UKEX available for Ex-rated models.
