Heavy-duty dolly CTS02

for transportmetal

Overview

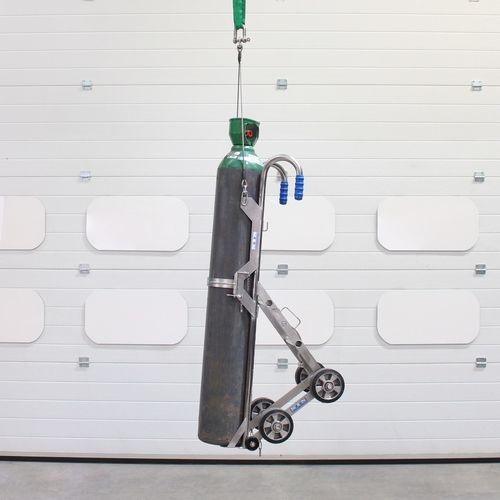

The CTS02 gas bottle trolley is engineered for safe hoisting and level transfers of cylinders using an overhead crane, forklift or derrick. It combines a fixed clamping band to secure the cylinder with a tested, certified wire rope lifting sling to enable safe overhead lifting of the trolley and cylinder together.

Features

• Tested and certified wire rope lifting sling for overhead lifting
• Safe Working Load (SWL): 150 kg
• 304-grade corrosion-resistant stainless steel construction (manufactured in the UK)
• Fixed diameter securing/clamping band with single removable locking pin (suitable for cylinders Ø 230 mm ±10 mm)
• Unique wheel arrangement: 65 mm front wheels for vertical loading and four 160 mm main wheels for manoeuvrability and negotiating small steps and door sills
• Low manual operating force (<15 kg)
• ATEX / UKEX option available for hazardous zones 1, 2, 21 and 22

Design & Operation
The cylinder is positioned in the trolley and secured with the clamping band. The certified lifting sling attaches to the trolley for overhead hoisting so the trolley and cylinder are lifted as a single unit. The design reduces manual handling risk and minimises maintenance requirements for long service life.

Key benefits

• Reduces manual handling injuries
• Improves handling efficiency for multi-level transfers
• Easy to operate with low maintenance
• Long expected service life (20+ years)

Specification

• Model: CTS02
• Safe Working Load (SWL): 150 kg
• Maximum cylinder height: 1600 mm
• Acceptable cylinder diameters: 200–230 mm
• Securing band diameter supplied: 230 mm (±10 mm)
• Manual operating force: <15 kg
• Main wheels: 160 mm nylon-centred with elastic rubber tyres and precision bearings
• Front wheels: 65 mm nylon for vertical loading
• Capable of negotiating steps and door sills
• Certified lifting sling supplied; load test certificate provided
• Standard compliance: CE / UKCA
• ATEX / UKEX option: CTS02-Ex for Zones 1, 2, 21, 22

Upgrades
ATEX / UKEX model (CTS02-Ex) available for hazardous atmospheres; manufactured to ensure electrical continuity and a safe path to ground when operated at floor level.

Technical characteristics / specifications

• Material: 304-grade stainless steel
• SWL: 150 kg
• Max cylinder height: 1600 mm
• Cylinder diameter range: 200–230 mm
• Securing band supplied: 230 mm (±10 mm)
• Manual force required: <15 kg
• Wheels: 160 mm main, 65 mm front (nylon-centred)
• Includes certified lifting sling and load test certificate
• Compliance: CE / UKCA; ATEX/UKEX option
