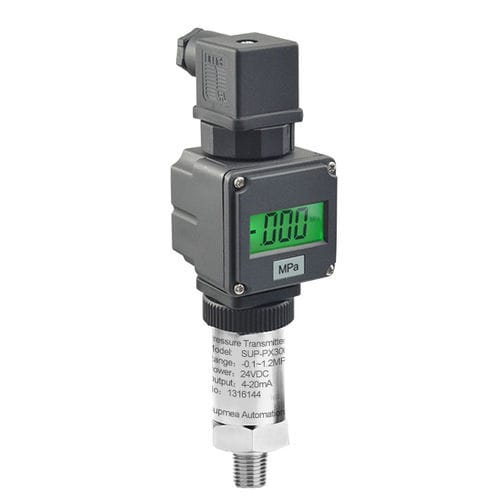

Absolute pressure transmitter SUP-PX300
4-20 mAdigital24VDC

Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC - image - 2
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC - image - 3
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC - image - 4
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC - image - 5
Absolute pressure transmitter - SUP-PX300 - Supmea Automation - 4-20 mA / digital / 24VDC - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Pressure type
absolute
Output
4-20 mA, digital
Supply voltage
24VDC
Mounting
threaded
Fluid
for oil, for water, for gas
Applications
for marine applications, for the petrochemical industry, for building automation, for railway applications, for the aeronautical industry
Pressure range

Min.: -0.1 bar
(-1.45 psi)

Max.: 600 bar

Precision

0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC, control instrument etc. Features Installation: Thread Indication resolution - 0.5% Output signal - 4-20ma analog output Pressure type - Gauge pressure; Absolute pressure Pressure overload - 150%FS Introduction Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC ,control instrument, and etc.
