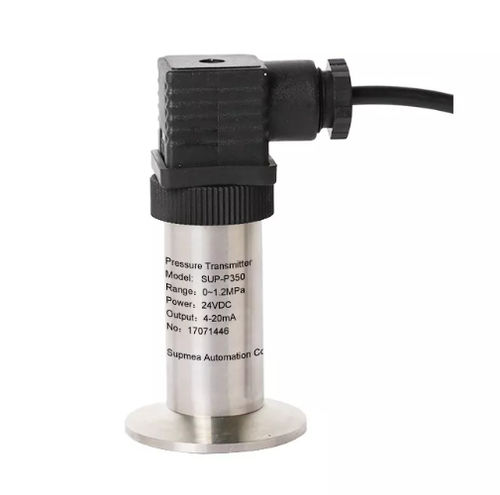

Absolute pressure transmitter SUP-P350K
piezoresistive4-20 mA24VDC

absolute pressure transmitter
absolute pressure transmitter
absolute pressure transmitter
absolute pressure transmitter
absolute pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
4-20 mA
Supply voltage
24VDC
Mounting
flush diaphragm
Fluid
for oil, for gas
Material
stainless steel
Other characteristics
compact
Process temperature

Min.: -10 °C (14 °F)

Max.: 85 °C (185 °F)

Pressure range

Min.: -1 bar (-14.5 psi)

Max.: 400 bar (5,801.51 psi)

Description

SUP-P350K is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range: -0.1~ 0 ~ 40MPa Resolution: 0.5% F.S Output signal: 4~20mA Installation: Clamp Power supply: 24VDC (12 ~ 36V) Product - Pressure transmitter Model - SUP-P350K Measure range - -0.1~0 to 0 ~ 40MPa Indication resolution - 0.5% Ambient temperature - -10 ~ 85 ℃ Output signal - 4-20mA analog output Pressure type - Gauge pressure; Absolute pressure Measure medium - Liquid; Gas; Oil etc Pressure overload - 150%FS Power - DC24 (12-36V)
