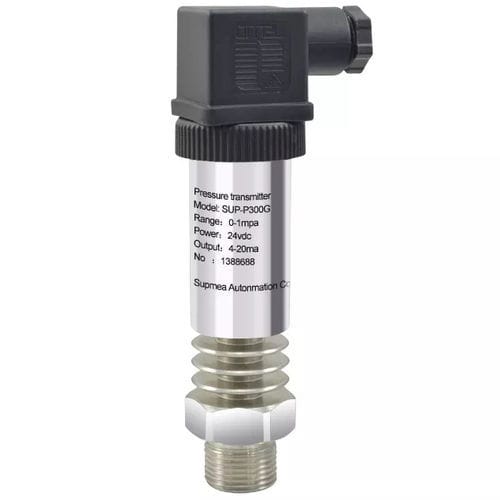

Absolute pressure transmitter SUP-P300G
piezoresistiveanalog24VDC

absolute pressure transmitter
absolute pressure transmitter
absolute pressure transmitter
absolute pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
analog
Supply voltage
24VDC
Mounting
threaded
Fluid
for oil, for gas
Material
stainless steel
Other characteristics
compact, high-temperature
Pressure range

Max.: 600 bar (8,702.26 psi)

Min.: -1 bar (-14.5 psi)

Process temperature

Max.: 300 °C (572 °F)

Min.: -50 °C (-58 °F)

Description

SUP-P300G is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range: -0.1~ 0 ~ 60MPa Resolution: 0.5% F.S Output signal: 4~20mA Installation: Thread Power supply: 24VDC (9 ~ 36V) Product - Pressure transmitter Model - SUP-P300G Measuring range - -0.1~0 to 0 ~ 40MPa Display resolution - 0.5% Medium temperature - -50-300°C Working temperature - -40-85°C Output signal - 4-20mA Analog output Pressure type - Gauge pressure; Absolute pressure Measure medium - Liquid; Gas; Oil etc Pressure overload - 150%FS Power supply - 24VDC (12-36V) Introduction SUP-P300G High temperature pressure transmitter
