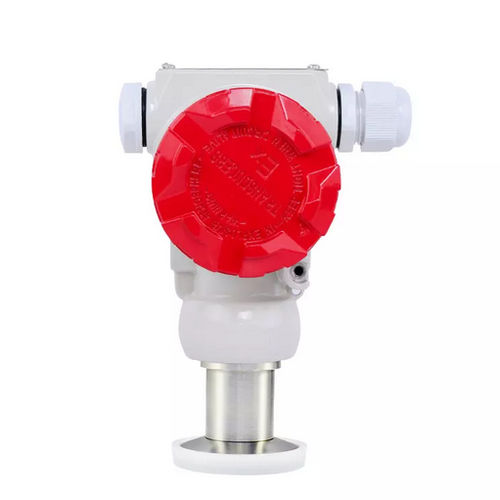

Absolute pressure transmitter SUP-P450 2088membranepiezoresistive4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- membrane, piezoresistive
- Output
- 4-20 mA, digital
- Supply voltage
- 24 Vdc
- Fluid
- for gas, for oil
- Material
- stainless steel
- Protection level
- IP65
- Other characteristics
- compact, smart, with LCD display
- Pressure range
Max.: 400 bar
(5,801.51 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.5 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -10 °C
(14 °F)
Description
SUP-P450 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.
Features
Range: -0.1~ 0 ~ 40MPa
Resolution: 0.5% F.S
Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485
Installation: Clamp
Power supply: 24VDC (9 ~ 36V)
Product - Pressure transmitter
Model - SUP-P450
Measure range - -0.1~0 to 0 ~ 40MPa
Indication resolution - 0.5%
Ambient temperature - -10 ~ 85 ℃
Output signal - 4-20mA analog output
Pressure type - Gauge pressure; Absolute pressure
Measure medium - Liquid; Gas; Oil etc
Pressure overload - 150%FS
Power - DC24 (12-36V)
Introduction
SUP-P400 Digital Smart LED/LCD display with shell Industrial Pressure Transmitter
