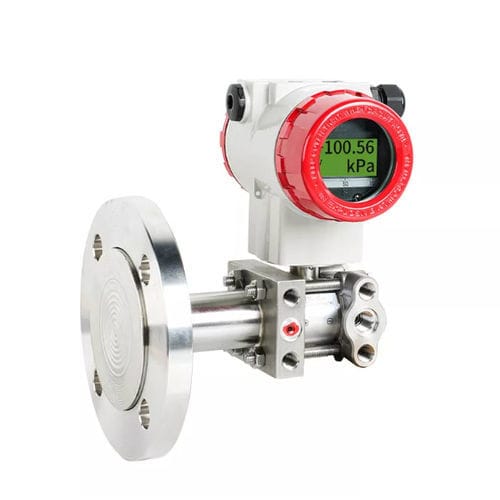

Relative pressure transmitter SUP-2051LTdifferential4-20 mAHART
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, differential
- Output
- 4-20 mA, HART
- Supply voltage
- 24 Vdc
- Mounting
- flange-mount
- Fluid
- for oil
- Material
- stainless steel, aluminum, PTFE
- Protection level
- IP67
- Other characteristics
- high-temperature
- Pressure range
Min.: -100,000 Pa
(-14.5 psi)Max.: 3,000,000 Pa
- Process temperature
Min.: -50 °C
(-58 °F)Max.: 600 °C
(1,112 °F)
Description
SUP-2051LT Flange-mounted differential pressure transmitter measures the height of the tank body according to According to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship
Performance
It is suitable for measuring fluid media such as ultra-high temperature 600℃, high viscosity, corrosiveness, easy precipitation, etc.
