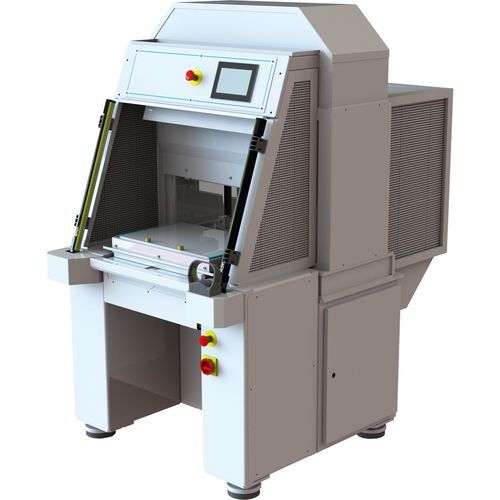

Pneumatic press SA 690C

electricformingleather

Product overview
This hot thermoforming press SA 690C, designed and manufactured by SUTEAU-ANVER, is compact and dedicated to hot thermoforming of leather goods such as rigid bag bottoms. The Allen-Bradley touch control provides intuitive operation and adjustable settings for consistent, repeatable results across materials.

Technical features

• Plate area: 480×330 mm (other sizes on request)
• Stroke: 160 mm (other strokes on request)
• Opening: 175 mm (other openings on request)
• Adjustable power: 0.5–2 T (other powers on request)
• Compression time adjustable from 0 to 60 seconds via timer
• Set of upper and lower plates for tool fixation
• Maximum temperature: 150 °C
• Independent upper and lower regulation by digital thermostat
• Safety light curtain (cells) class 4

Options

• Cycle start by touch button
• Coding system for up to 7 tools
• Overheating alarm
• Monitoring of each heating element with visual indicator

Specifications

• Plate area: 480×330 mm (other sizes on request)
• Stroke: 160 mm (other strokes on request)
• Opening: 175 mm (other openings on request)
• Adjustable power: 0.5–2 T (other powers on request)
• Compression time adjustable from 0 to 60 seconds via timer
• Set of upper and lower plates for tool fixation
• Maximum temperature: 150 °C
• Independent upper and lower regulation by digital thermostat
• Safety light curtain (cells) class 4
