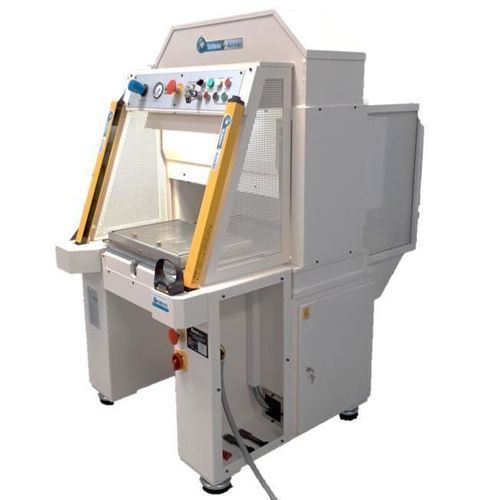

Electric press SA 690F

electronicformingleather

Description
This thermoforming press designed and manufactured by SUTEAU-ANVER is compact and intended for cold thermoforming of leather goods parts (for example rigid bag bottoms). The machine is operated via an Allen Bradley touchscreen and is configured for productive, repeatable forming across different materials.

Characteristics

• Plate area: 480 x 330 mm (other sizes available on request)
• Stroke: 160 mm (other strokes available on request)
• Opening: 175 mm (other openings available on request)
• Adjustable power: 0.5 to 2 T (other powers on request)
• Compression time adjustable from 0 to 60 seconds via timer
• Set of upper and lower plates for tool fixing
• Upper and lower plates prepared to receive cooling liquid flow
• Condensate recovery system fitted to the lower plate
• Safety: light curtain, class 4

Options

• Cycle start by push button
• Coding system for up to 7 tools
• Cooling system

Technical specifications

• Plate area: 480 x 330 mm
• Stroke: 160 mm
• Opening: 175 mm
• Adjustable power: 0.5 to 2 T
• Compression time: 0 to 60 seconds (adjustable by timer)
• Upper and lower plates for tool fixing
• Plates designed to receive cooling liquid flow
• Condensate recovery system on lower plate
• Safety: light curtain, class 4
