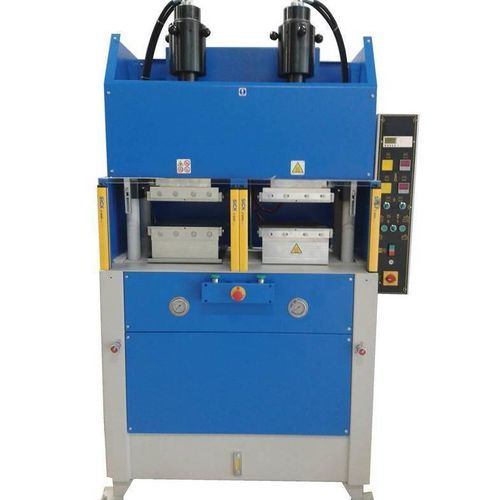

Hydraulic press PV 40

compressionlaboratorywith heating plates

Product description
This laboratory thermocompression press is designed for material testing and small-series production of presentation samples. It delivers 40 tons total force across both stations and integrates a heating station and a cooling station. Mechanical stops built into the two hydraulic push rams ensure accurate control of finished part thickness. The work cycle is automatic and fully programmable (temperature / positioning / time).

Technical features

• Two stations: heating station and cooling station
• Mechanical stops integrated in both hydraulic push rams for precise thickness control
• Automatic, programmable work cycle (temperature / positioning / time)
• Power: 40 tons (other powers on request)
• Working area: 400×300 mm (custom sizes on request)
• Daylight (open height): 200 mm
• Stroke: 125 mm (custom strokes on request)
• Heating: up to 200°
• Cooling station included
• Dimensions: width 1200 mm – height 2040 mm – depth 1000 mm
