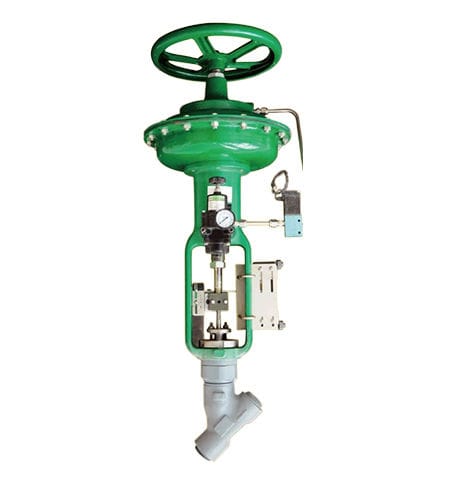

Globe valve SYwith handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatic, electric, hydraulic
- Function
- shut-off, drain
- Media
- for hot water, for steam
- Body
- angle seat, T-shaped, modular, Y
- Applications
- for industrial applications, for boiler, for steam turbines
- Material
- stainless steel, carbon steel
- Number of channels
- 2-way
- Associated function
- spray
- Other characteristics
- ISO, standard, ANSI
- DN
Min.: 0.75 in
Max.: 5 in
- Pressure
Min.: 10 MPa
Max.: 76 MPa
- Temperature
Min.: -29 °C
(-20 °F)Max.: 425 °C
(797 °F)
Description
Design standard: ASME B16.34
Body material: A105,12Cr1MoV, F22, F316, F91, F92
Flow characteristics: E%/L/Q
Leakage level: ANCI FCI-02 IV/V
Product Features
Good valve core stability. The sturdy and durable guide cylinder provides excellent valve core stability and can reduce vibration and mechanical noise.
Greater flow capacity. The flow-type flow channel of the valve has small flow résistance and large flow capacity.
The valve internais that have undergone standardized treatment have increased wear résistance and long service life.
Modular design of valve internais makes maintenance and replacement more convenient
