Synchronous torque motor HAS series

with brakemodularhollow-shaft

Introduction

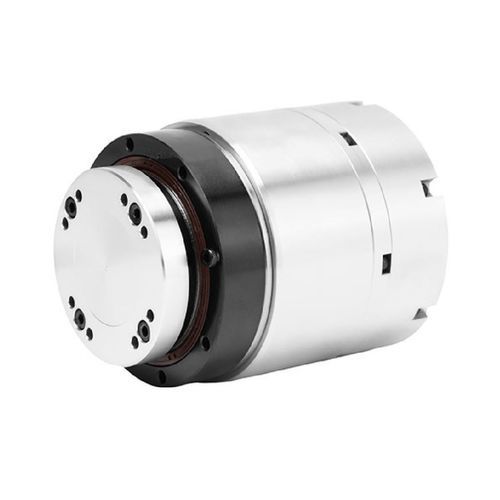

The HAS Solid Standard harmonic rotary actuator integrates a frameless torque motor, harmonic drive and Tamagawa multi‑turn absolute encoder. Five series are available (HAS11, HAS14, HAS17, HAS20, HAS25) covering rated torques from approx. 4 N·m to 133 N·m and outer diameters from ~62 mm to 110 mm. The end‑face mountable design suits lightweight or space‑restricted industrial applications.

Key features

• Lightweight modular design: integrated harmonic drive, frameless motor and encoder reduce overall volume (~30–50%) and mass (~20–40%).
• High torque density: transmission layout minimizes losses to convert motor power into high shaft output torque.
• High precision: harmonic gearing with minimal backlash combined with a high‑resolution Tamagawa encoder (single‑turn 23‑bit, multi‑turn 16‑bit) for accurate position control.
• Rigidity and shock tolerance: solid shaft and balanced material distribution deliver strong torsional stiffness and impact resistance.
• Compact footprint: simplified mechanical interfaces reduce overhangs and allow direct end‑face mounting.

Technical specifications (summary)

• Supported models: HAS11, HAS14, HAS17, HAS20, HAS25.
• Reduction ratios: typical options 51, 81, 101, 121, 161 (varies by model).
• Rated torque: approx. 4 N·m up to 133 N·m (model/ratio dependent).
• Peak torque: up to ~217 N·m depending on variant.
• Speeds: rated up to ~69 RPM; max up to ~118 RPM depending on ratio.
• Electrical: rated currents ~0.62–3.90 A; max currents up to ~6.90 A. Motor poles: HAS11 = 10 poles; HAS14/17/20/25 = 16 poles.
• Encoder: Tamagawa absolute multi‑turn (23‑bit single‑turn, 16‑bit multi‑turn).
• Dimensions & mass (examples): outer diameters ~63–110 mm; mass without brake ~1.17–3.6 kg; with brake ~1.36–4.2 kg. Hollow shaft Ø ≈ 9–17 mm (model dependent).

Applications & mounting
Designed for compact robotic joints, precision positioning systems, automation equipment and space‑constrained assemblies. Direct end‑face mounting simplifies integration into lightweight mechanisms and modular systems.

Ordering & notes
Contact supplier with required model (HAS11/14/17/20/25), reduction ratio and whether brake is needed. Values above are product parameters for reference; consult the detailed datasheet for per‑variant electrical, mechanical and inertia data.
