Brushless torque motor TDB-150-037-NH-Adirect current220 Vmodular
Add to favorites
Compare this product
Characteristics
- Type
- brushless, direct current
- Voltage
- 220 V
- Configuration
- hollow-shaft, external rotor, modular, compact, frameless, lightweight, large, flat-body, flat
- Protection class
- IP40
- Number of poles
- 16-pole
- Applications
- for robotics, for machine tools, for automotive applications, industrial, for rotary tables, packaging machine, for medical applications, for the semiconductor industry, for the electronics industry, for the pharmaceutical industry, for the food industry, for medical equipment, with built-in encoder, for cutting machines
- Other characteristics
- custom, direct-drive, high-inertia, low-voltage, motion control, with control system, high-torque, high-precision, high-efficiency, high-speed, closed-loop, low-speed, high-power, high-resolution, precision, low-noise, low-inertia, low-vibration, standard, with built-in encoder, servo-driven
- Power
0.04 W
(0 hp)Max.: 42 W
(0.06 hp)Min.: 42 W
(0.06 hp)- Intensity
Max.: 16 A
Min.: 4.6 A
- Torque
Max.: 3.5 Nm
(2.581468 ft.lb)Min.: 1 Nm
(0.737562 ft.lb)- Rotational speed
Max.: 400 rpm
(2,513.2741 rad.min-1)Min.: 400 rpm
(2,513.2741 rad.min-1)- Diameter
150,000 µm
(5.91 in)Max.: 150 µm
Min.: 150 µm
- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
Introduction

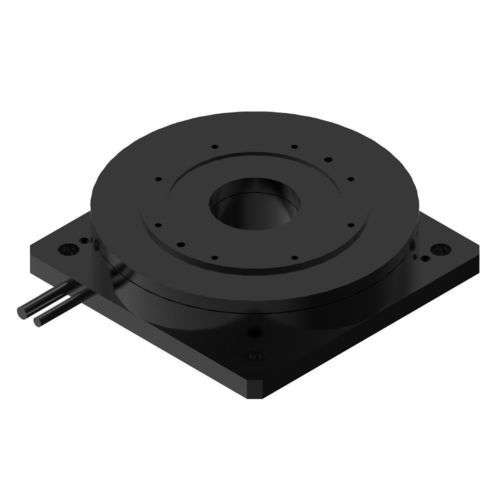

The TDB-150-037-NH-A direct-drive torque motor features a flat, low-profile external-rotor design with a 150 mm outer diameter and 37 mm height. It delivers 1 N·m continuous torque and 3.5 N·m peak torque. An incremental encoder provides closed-loop commutation for precise, repeatable positioning. The direct-drive configuration eliminates the need for gearboxes, reducing maintenance and improving system compactness.
Specification
Performance | Unit | Performance | Unit
Continuous Torque | 1 N ·m | Peak Torque | 3.5 N ·m
Continuing Current | 4.6 Arms | Peak Current | 16 Arms
Rated power | 42 W | Torque constant | 0.22 N ·m/Arms
Resistance@25℃ | 2 Ohms L-L | Inductance | 1 mH
Back-EMF constant@25℃ | 0.2 Vrms/rad/s | Moment of Inertia | 0.001 Kg ·m^2
Accuracy | ±20 Arc sec | Repeatability | ±1.5 Arc sec
Max.Axial Load | 200 N | Max.Moment Load | 10 N ·m
Axial Runout | 5 µm | Radial Runout | 5 µm
Max.Speed | 400 Rpm | Mass of Motor | 2.8 Kg
Pole Number | 16 | Resolution | 11740 Lines/Rev
Diameter | 150 mm | Height | 37 mm
The TDB-150-037-NH-A direct-drive torque motor features a flat, low-profile external-rotor design with a 150 mm outer diameter and 37 mm height. It delivers 1 N·m continuous torque and 3.5 N·m peak torque. An incremental encoder provides closed-loop commutation for precise, repeatable positioning. The direct-drive configuration eliminates the need for gearboxes, reducing maintenance and improving system compactness.
Specification
Performance | Unit | Performance | Unit
Continuous Torque | 1 N ·m | Peak Torque | 3.5 N ·m
Continuing Current | 4.6 Arms | Peak Current | 16 Arms
Rated power | 42 W | Torque constant | 0.22 N ·m/Arms
Resistance@25℃ | 2 Ohms L-L | Inductance | 1 mH
Back-EMF constant@25℃ | 0.2 Vrms/rad/s | Moment of Inertia | 0.001 Kg ·m^2
Accuracy | ±20 Arc sec | Repeatability | ±1.5 Arc sec
Max.Axial Load | 200 N | Max.Moment Load | 10 N ·m
Axial Runout | 5 µm | Radial Runout | 5 µm
Max.Speed | 400 Rpm | Mass of Motor | 2.8 Kg
Pole Number | 16 | Resolution | 11740 Lines/Rev
Diameter | 150 mm | Height | 37 mm
