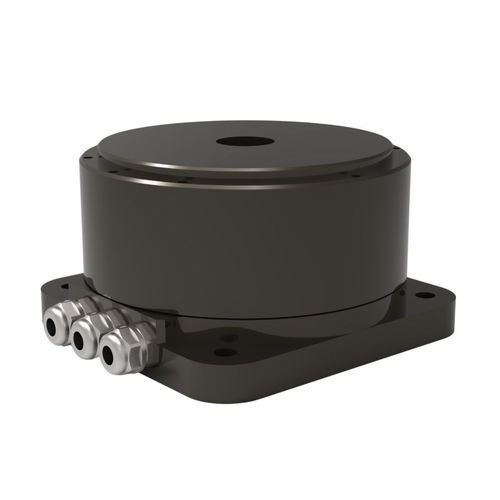

Brushless torque motor TDB-170-095-NH-A
DC220 Vwith brake

Brushless torque motor - TDB-170-095-NH-A - Suzhou Honpine Precision Industry Co., Ltd. - DC / 220 V / with brake
Brushless torque motor - TDB-170-095-NH-A - Suzhou Honpine Precision Industry Co., Ltd. - DC / 220 V / with brake
Add to favorites
Compare this product
Go to the Suzhou Honpine Precision Industry Co., Ltd. website for more information

Characteristics

Type
brushless, DC
Voltage
220 V
Configuration
modular, outer-rotor, with brake, frameless, compact, lightweight, small, large, flat-body, flat
Protection class
IP40
Applications
for robotics, for machine tools, for the food industry, for the electronics industry, for drive systems, linear actuator, for collaborative robots, for winding operations, for lifting applications, for Venetian blinds, for humanoid robot, for compressors, for measurement instruments, traction, agricultural, for hydraulic applications, with built-in encoder, for tunnel boring machine, for grinding machines, for rotary tables, for the semiconductor industry, industrial, packaging machine, for medical applications, for pump, for automatic doors, for automotive applications, optical, heavy-duty, for conveyors, for cutting machines, for medical equipment, for winches, for wood-processing machines, for the pharmaceutical industry, spindle
Other characteristics
custom, direct-drive, motion control, high-torque, high-precision, high-resolution, low-vibration, precision, high-efficiency, low-noise, low-speed, servo-driven, high-speed, with built-in encoder, low-inertia, high-inertia, integrated-drive
Power

400 W
(0.54 hp)

Max.: 398 W
(0.54 hp)

Min.: 398 W
(0.54 hp)

Intensity

Max.: 7.5 A

Min.: 2.5 A

Torque

Max.: 65 Nm
(47.94154 ft.lb)

Min.: 20 Nm
(14.751243 ft.lb)

Rotational speed

Max.: 190 rpm
(1,193.8052 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Diameter

170,000 µm
(6.69 in)

Max.: 170 µm

Min.: 95 µm

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Description

Introduction
TDB-170-095-NH-A Direct Drive Torque Motor adopts an outer rotor design, which structurally enables a higher moment of inertia and a larger output radius. It includes integrated Hall sensors for simplified startup and broad compatibility with various drives. Fitted with an incremental encoder, it is compatible with most servo control systems. With a positioning accuracy of ±20 arc seconds and repeatability of ±1.5 arc seconds, the motor meets precision machining and inspection requirements. Typical applications include CNC rotary tables, semiconductor equipment, robot joints, and precision inspection systems.

Specification (table)
Performance | Unit | Performance | Unit
Continuous Torque: 20 N·m | Peak Torque: 65 N·m
Continuous Current: 2.5 Arms | Peak Current: 7.5 Arms
Rated Power: 398 W | Torque Constant: 8.7 N·m/Arms
Resistance @25℃ (L-L): 10 Ohms | Inductance: 17.4 mH
Back-EMF Constant @25℃: 7.1 Vrms/rad/s | Moment of Inertia: 0.02 Kg·m^2
Accuracy: ±15 Arc sec | Repeatability: ±2 Arc sec
Max. Axial Load: 4000 N | Max. Moment Load: 200 N·m
Axial Runout: 5 µm | Radial Runout: 5 µm
Max. Speed: 190 rpm | Mass of Motor: 11.7 Kg
Pole Number: 30 | Resolution: 23bit Biss-C
Diameter: 170 mm | Height: 95 mm
