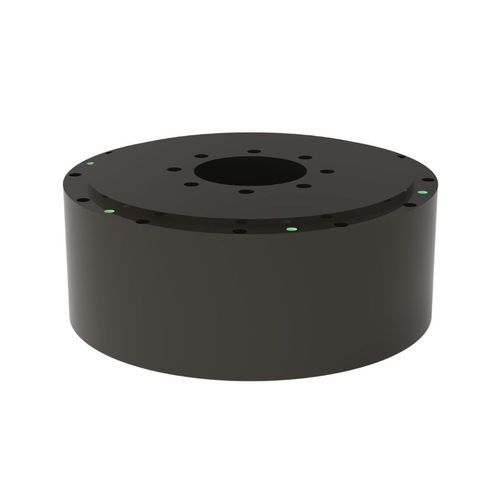

Brushless torque motor TDB-263-113-NH-ADCsynchronous220 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, brushless, DC
- Voltage
- 220 V
- Configuration
- modular, hollow-shaft, outer-rotor, with brake, compact, frameless, lightweight, small, large, flat-body, flat
- Protection class
- IP40
- Applications
- packaging machine, for machine tools, for robotics, with built-in encoder, for collaborative robots, industrial, for rotary tables, for medical applications, for medical equipment, for the semiconductor industry, heavy-duty, for the electronics industry, for automotive applications, for cutting machines, for the pharmaceutical industry
- Other characteristics
- custom, direct-drive, low-voltage, constant speed, high-torque, high-precision, high-speed, high-power, CANopen communication, high-efficiency, low-speed, with built-in encoder, motion control, low-inertia, high-inertia, servo-driven, high-resolution, low-vibration, integrated-drive, with control system, precision, standard, low-noise
- Power
1.49 kW
(2.03 hp)- Intensity
Max.: 14.2 A
Min.: 7.1 A
- Torque
Max.: 190 Nm
(140.136808 ft.lb)Min.: 95 Nm
(70.068404 ft.lb)- Rotational speed
Max.: 150 rpm
(942.4778 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
263 mm
(10.35 in)
Description
Introduction
The TDB-263-113-NH-A is a large direct-drive torque motor designed for heavy-duty automation and precision manufacturing. Its outer-rotor architecture, Hall-sensor-free topology and high-resolution incremental encoder enable accurate positioning, high torque transmission and reliable continuous operation in gantries, rotary stages and direct-drive axes.
Key benefits
The TDB-263-113-NH-A is a large direct-drive torque motor designed for heavy-duty automation and precision manufacturing. Its outer-rotor architecture, Hall-sensor-free topology and high-resolution incremental encoder enable accurate positioning, high torque transmission and reliable continuous operation in gantries, rotary stages and direct-drive axes.
Key benefits
- Higher positioning accuracy compared with conventional servo motors
- High continuous and peak torque for direct-drive applications
- Improved efficiency and reduced mechanical transmission elements
- Simplified maintenance due to direct-drive design
- Compact axial profile for space-constrained installations
