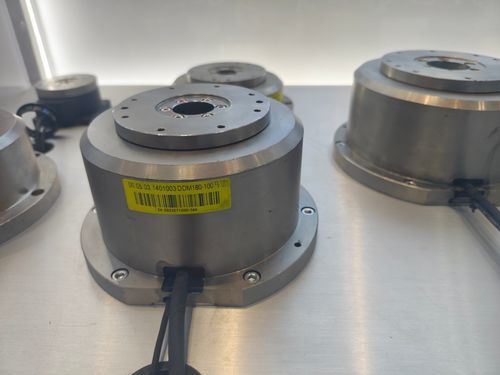

48 V motor FMC series

hollow-shaftIP65energy-saving

Introduction
Housed direct drive motors integrate stator, rotor, bearings, encoder and housing into a single unit designed for straightforward installation and alignment. Compared with motor-plus-gearbox solutions, they simplify mechanical transmission, improve positioning accuracy and dynamic response, and reduce maintenance and installation footprint.

Key features

• Absolute encoder option: position known immediately after power-on; single-turn resolution up to 540,672 pulses.
• High-precision positioning: typical accuracy up to ±30 arcsec (some models ±15 arcsec); repeatability up to ±5 arcsec.
• Hollow shaft and mounting features: mounting grooves and threaded holes on rotating and stationary sections; hollow shaft enables centralized cable routing.
• High torque density: compact design able to drive relatively large loads at high speeds.
• Multiple cam/motion profiles supported: Modified Sine (MS), Modified Trapezoidal (MT), MCMC1, Trapezoidal-Sine (TR).
• Dust-protected options and IP65 variants: selected models provide sealed rotating section.
• No additional lubrication required and energy-efficient behavior when stopped.

Integration & control

• Supports open communication protocols (e.g., CC-Link, DeviceNet) to reduce wiring and simplify integration.
• Driver, motor and cables can be configured with interchangeable components for modular maintenance.
• Operating parameters programmable via programming terminal or PC to adapt motion profiles and application-specific settings.

Environmental & mechanical limits

• Enclosure: fully enclosed, self-cooling.
• Operating temperature: -20℃ to 40℃ (non-freezing).
• Humidity: ≤90% RH (non-condensing).
• Altitude: max. 4000 m; above 1000 m power derates ~1.5% per 100 m.
• Avoid corrosive/flammable gases, oil droplets and excessive dust.

Models & electrical data (examples)
Available models cover a power range from ~100 W to 1600 W with rated voltages typically 48 V DC. Typical model examples are listed below; refer to the technical table for full parameters per model.

• FMC05213-0015 | 159 W | 0.4 N·m | 3790 rpm | 48 V
• FMC0507-0010 | 100 W | 0.32 N·m | 3000 rpm | 48 V
• FMC07730-0075 | 750 W | 2.39 N·m | 3000 rpm | 48 V
• FMC12730-0160 | 1600 W | 6.37 N·m | 2400 rpm | 48 V
