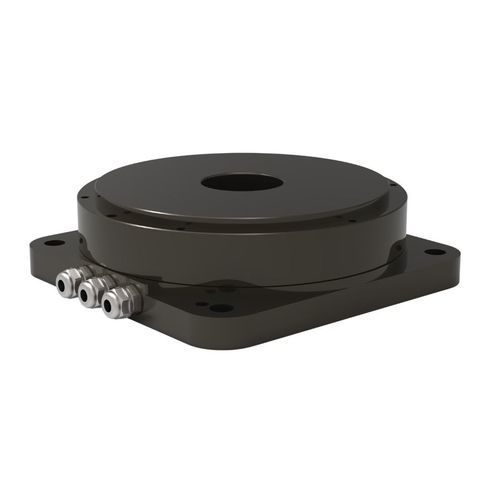

DC torque motor TDB-170-050-NH-ABLDC220 Vmodular
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, DC
- Voltage
- 220 V
- Configuration
- hollow-shaft, modular, outer-rotor, frameless, compact, lightweight, large, flat-body, flat
- Protection class
- IP40
- Applications
- packaging machine, for machine tools, for robotics, for collaborative robots, for humanoid robot, for rotary tables, for drive systems, for the semiconductor industry, for compressors, industrial, for medical equipment, with built-in encoder, for winches, for the food industry, for Venetian blinds, for winding operations, for tunnel boring machine, for measurement instruments, for medical applications, for hydraulic applications, for grinding machines, heavy-duty, for the electronics industry, for automatic doors, for cutting machines, for the pharmaceutical industry, for wood-processing machines, for automotive applications
- Other characteristics
- motion control, direct-drive, integrated-drive, custom, servo-driven, low-voltage, constant speed, standard, high-torque, high-precision, low-vibration, with control system, low-inertia, precision, high-efficiency, high-power, with built-in encoder, high-speed, low-noise, high-resolution, high-inertia
- Power
Max.: 220 W
(0.3 hp)220 W
(0.3 hp)Min.: 220 W
(0.3 hp)- Intensity
Max.: 6 A
Min.: 2 A
- Torque
Max.: 18 Nm
(13.276119 ft.lb)Min.: 6 Nm
(4.425373 ft.lb)- Rotational speed
Max.: 350 rpm
(2,199.1149 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 170 µm
170,000 µm
(6.69 in)Min.: 50 µm
- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
Introduction
The TDB-170-050-NH-A is a low-speed, high-torque DC torque motor designed for precision automation and direct-drive CNC applications. It provides precise position control, reduced transmission error and high rigidity with low vibration, enabling accurate indexing and direct-drive rotation for semiconductor handling, turntables and panel handling systems.
Applications
Key features
The TDB-170-050-NH-A is a low-speed, high-torque DC torque motor designed for precision automation and direct-drive CNC applications. It provides precise position control, reduced transmission error and high rigidity with low vibration, enabling accurate indexing and direct-drive rotation for semiconductor handling, turntables and panel handling systems.
Applications
- Semiconductor wafer processing equipment
- Precision indexing tables and rotary stages
- High-accuracy direct-drive turntables
- LCD and flat-panel handling systems
Key features
- Eliminates transmission backlash and mechanical reduction errors
- High structural rigidity with low vibration
- Fast dynamic response suitable for servo control
- Low maintenance due to direct-drive construction
