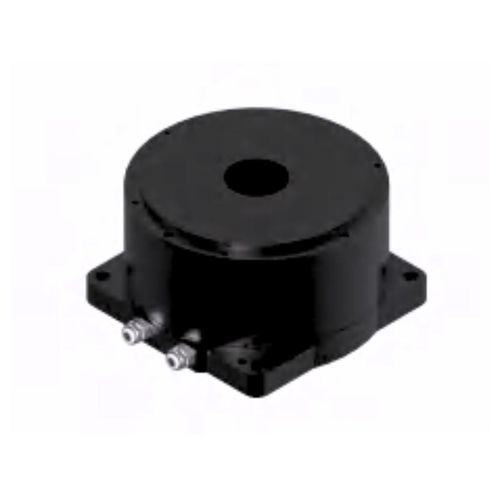

Brushless torque motor TDB-170-125-NH-BDC220 Vouter-rotor
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 220 V
- Configuration
- outer-rotor
- Protection class
- IP40
- Applications
- for machine tools, for robotics, for collaborative robots, for medical equipment, industrial, for cutting machines, for rotary tables, packaging machine, for medical applications, for the pharmaceutical industry, for automotive applications, for the semiconductor industry, heavy-duty, for Venetian blinds, for the electronics industry, for the food industry, with built-in encoder
- Other characteristics
- low-voltage, direct-drive, custom, constant speed, motion control, high-torque, high-power, standard, high-precision, low-inertia, high-efficiency, low-speed, high-resolution, precision, low-noise, medium-speed, servo-driven, high-inertia, high-speed, low-vibration, with built-in encoder, with speed controller
- Power
630 W
(0.86 hp)Min.: 220 W
(0.3 hp)Max.: 220 W
(0.3 hp)- Intensity
Min.: 2.5 A
Max.: 7.5 A
- Torque
Min.: 18 Nm
(13.276119 ft.lb)Max.: 60 Nm
(44.253729 ft.lb)- Rotational speed
150 rpm
(942.4778 rad.min-1)- Diameter
170 mm
(6.69 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)
Description
Introduction
The TDB-170-125-NH-B direct drive DD torque motor combines an outer-rotor architecture with stable control characteristics, making it suitable for CNC rotary tables, semiconductor equipment, robotic joints, precision inspection and other industrial applications. The outer rotor design increases the moment of inertia and output radius, enabling high dynamic response under heavy loads. The model is designed for drive systems that can start without Hall sensors and is compatible with most industrial servo drives for straightforward commissioning.
Applications
The TDB-170-125-NH-B direct drive DD torque motor combines an outer-rotor architecture with stable control characteristics, making it suitable for CNC rotary tables, semiconductor equipment, robotic joints, precision inspection and other industrial applications. The outer rotor design increases the moment of inertia and output radius, enabling high dynamic response under heavy loads. The model is designed for drive systems that can start without Hall sensors and is compatible with most industrial servo drives for straightforward commissioning.
Applications
- CNC rotary tables
- Semiconductor equipment
- Robotic joints
- Precision inspection systems
- High-dynamic-response, high-load applications
