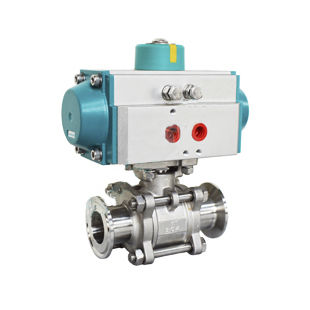

Ball valve 30W06lever controlelectricpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever control, electric, pneumatic
- Function
- for control, shut-off, regulating
- Media
- for water, for oil, beverage, for milk
- Body
- 2-piece, triple-offset
- Applications
- for food applications, industrial, sanitary
- Material
- stainless steel, cast
- Other characteristics
- high-performance
- DN
Max.: 200 mm
(7.874 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -25 °C
(-13 °F)
Description
Technical Parameters Range: DN15 ~ DN200 (1/2" ~ 8")
Pressure range: PN0.6 ~ 1.6mpa
Temperature range: -25℃ ~ +150℃
Material optional: Stainless steel (304, 316, 316L)
Sealing material: PTFE
Connection mode: Clamp, external thread (customizable welding type)
Driving mode: pneumatic actuators, electric actuators, manual
Control mode: switching ON/OFF, regulating type 4-20mA or 1-5V
Optional accessories: solenoid valve, limit switch, pressure reducing valve, positioner, handwheel mechanism, protection valve, quick discharge valve.(Indicate whether it is explosion-proof or not).
