Mechanical alignment system Dual lens AA-10-z

opticaloptical devicefor waveguides and optical fiber arrays

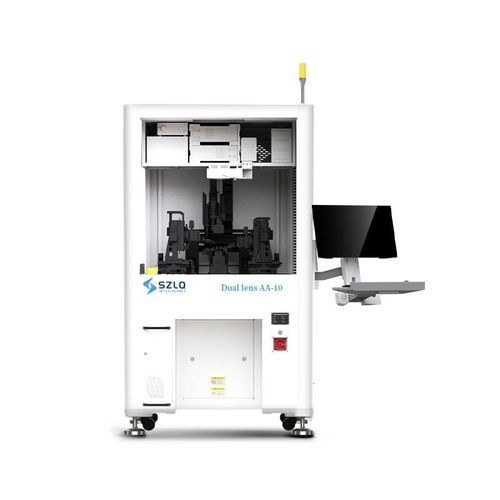

The Dual-lens AA-10-z is an active alignment system developed for synchronous dual-lens coupling. A direct-drive motor-driven nano-linear positioning platform provides high coupling efficiency, stability and accuracy. The equipment integrates two high-precision six-degree-of-freedom active coupling and mounting systems, high-precision visual guidance, upper/lower visual calibration, LENS pressure feedback and force control, automatic dispensing and UV curing, and an optional temperature-controlled carrier table — suitable for small-batch validation and high-volume production.

Key features

• Two high-precision six-degree-of-freedom active coupling and mounting systems
• Direct-drive motor-driven nano-linear positioning platform for improved coupling efficiency and accuracy
• High-precision visual guidance with upper and lower visual calibration
• LENS pressure feedback and touch-bottom force control
• Automatic precise dispensing and automatic UV curing
• Optional temperature-controlled carrier table
• High-efficiency air-float vibration damping system
• User-friendly software interface, high equipment compatibility and quick fixture change
• Compact design for convenient integration

Application areas

• Photonics
• Power devices
• Microwave RF devices
• New energy vehicle sector

Characteristics / Technical specifications

• Operating environment: Temperature 22°C ± 2°C; Humidity 55% ± 5%
• Repeatable positioning accuracy of coupled linear axes: ±100 nm
• Equipment weight: Approx. 650 kg
• Positive pressure source: Pressure ≥ 0.5 MPa; receiver caliber: 8 mm
• Negative pressure source: Vacuum degree ≤ -80 KPa; receiver caliber: 8 mm (optional vacuum pump)
• LENS vacuum adsorption with force-control feedback
• Dispensing positioning and touch-bottom force-control feedback
