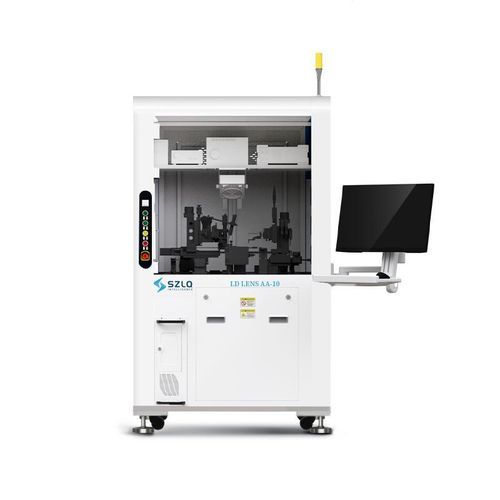

High-accuracy alignment system LD LENS AA-10

automatic

Overview:
LD LENS AA-10 is a high-precision coupling and mounting system designed for LD LENS coupling and mounting, providing six degrees of freedom active coupling and integrated control and automation for stable, repeatable production.

Key functions and features:

• Six degrees of freedom active coupling and mounting
• Temperature-controlled carrier for process stability
• High-precision visual guidance with upper/lower visual positioning components
• Accurate LENS under-pressure feedback
• Nozzle force control combined with vacuum adsorption
• Automatic dispensing and automatic UV curing for process integration
• Air-float shock absorption system for vibration isolation
• Friendly software interface with fast recipe switching and high equipment compatibility
• Convenient replacement of fixtures to support small-run validation through large-scale mass production
• Customizable configuration with automatic calibration capabilities

Application areas:

• Photonics
• Power devices
• Microwave RF devices
• New energy vehicle sector

Technical characteristics / specifications:

• Carrier temperature control: 20~80 °C, ±0.5 °C (optional)
• Repeatable positioning accuracy of coupled linear axes: ±100 nm
• Equipment weight: approx. 650 kg
• Positive pressure source: Pressure ≥ 0.5 MPa; receiver caliber: 8 mm
• Negative pressure source: Vacuum degree ≤ -80 kPa; receiver caliber: 8 mm (vacuum pump optional)
• Nozzle force control combined with vacuum adsorption
• Includes product fixture and automatic dispensing capabilities
