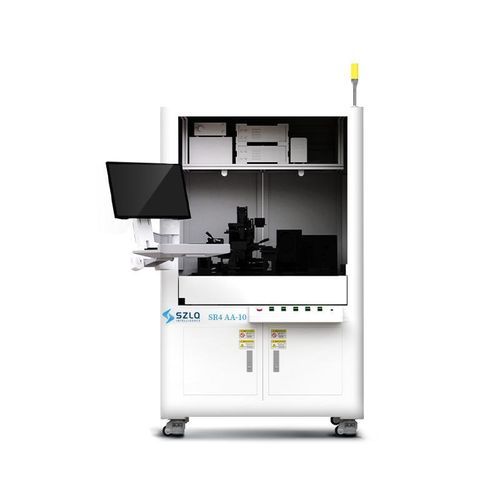

Automatic coupling system SR4 AA-10

SR4 AA-10 is a coupling machine for multimode products designed for industrialized mass production. It integrates visual guidance, force-feedback control and automated dispensing and UV curing to deliver repeatable, high-throughput coupling and packaging processes.

Key functions

• Efficient and accurate coupling and mounting system
• Multi-material tray for flexible part handling
• Accurate visual guidance with upper/lower visual calibration
• Force-feedback for LENS pressure (force sensing and control)
• Automatic dispensing and integrated UV curing
• Air-bearing shock absorption system for stable operation
• User-friendly software interface and high equipment compatibility (fixture + software change for different products)

Application areas

• Photonics
• Power devices
• Microwave RF devices
• New energy vehicle components

Technical parameters

• Model: SR4 AA-10
• Coupling: SR4 coupling process with micromotion and instrument display, supported by coupling algorithms
• Coupling accuracy (resolution): Angle: ±0.001"; Linear: 0.2 μm (at 1/20 subdivision)
• Force control range: 10 g ~ 1 kg

Advantages

• Precision coupling axis to meet varied product requirements
• Automatic insertion/removal of MT fiber to reduce manual handling and increase throughput
• Support for multi-station or single-station fixtures according to incoming material
• Automated dispensing and UV curing suitable for continuous production
