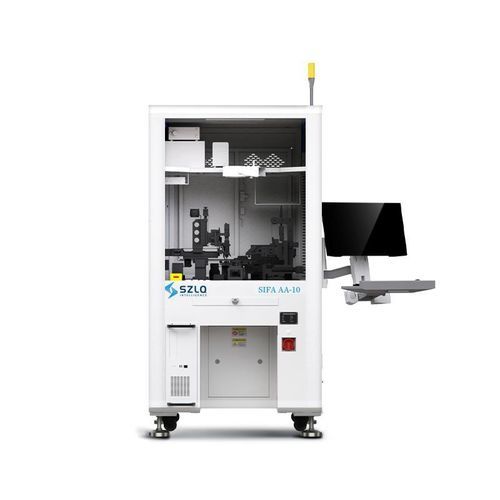

Coupling system SIFA AA-10

SIFA AA-10 is a coupling device designed for T/RX-FA product development. It provides automated dispensing, UV curing and force-feedback control, integrating hardware and software for both small-scale validation and high-volume production.

Key features

• Efficient and precise coupling mounting system
• Automatic leveling system for the stage
• Visual guidance for alignment
• Real-time, accurate feedback of FA X/Z direction pressure
• Automatic dispensing
• Automatic UV curing
• Air floating shock absorption system for improved stability
• User-friendly software interface with fast software switching
• Self-developed efficient coupling system with high device compatibility
• Convenient replacement of fixtures

Application Areas

• Photonics
• Power devices
• Microwave RF device field
• New energy vehicle sector

Characteristics / Technical specifications

• Operating environment: Temperature 22°C ± 2°C; Humidity 55% ± 5%
• Repeatable positioning accuracy of coupled linear axes: ±100 nm
• Equipment weight: Approx. 600 kg
• Positive pressure source: Pressure ≥ 0.5 MPa; receiver caliber: 8 mm
• Negative pressure source: Vacuum degree ≤ -80 kPa; receiver caliber: 8 mm (optional vacuum pump)
• FA vacuum adsorption + electric jaws clamping with force control feedback
• Dispensing positioning and touch-bottom force control feedback

Compatibility & options

• Designed for R&D validation and scalable for production lines
• Optional vacuum pump and customizable fixtures
• High compatibility with diverse FA devices and modules
• Fast software switching to adapt process recipes
