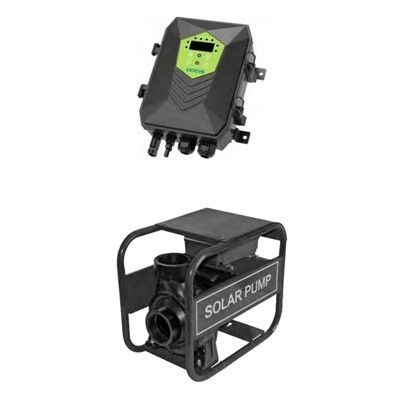

Water pump SIVC Seriescentrifugalnormal primingmobile
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Priming
- normal priming
- Mobility
- mobile
- Domain
- industrial, for water treatment, agriculture, solar
- Applications
- transfer, irrigation
- Material
- stainless steel, cast iron, brass, copper
- Fluid specification
- for low-viscosity fluids
- Voltage
- 48 V, 110 V
- Protection level
- IP55
- Other characteristics
- compact, with electronic control, brushless, solar-powered
- Flow
6 m³/h, 21 m³/h, 26 m³/h, 45 m³/h
(211.888 ft³/h, 741.608 ft³/h, 918.18133 ft³/h, 1,589.16 ft³/h)- Head
14 m, 15 m, 17 m, 24 m
(45'11" , 49'02" , 55'09" , 78'08" )- Power
Min.: 550 W
(0.75 hp)Max.: 1,500 W
(2.04 hp)- Fluid temperature
Min.: -15 °C
(5 °F)Max.: 60 °C
(140 °F)
Description
• 100% copper winding
• Efficient PMSM brushless motor (PMSM: Permanent Magnet Synchronous Motor)
• Efficient synchronous motor
• Cast iron pump body with e-coating treatment
• Brass impeller
SIVC DC Solar Centrifugal Water Pump Overview
MPPT DC Controller
Protection class: IP55
Ambient temperature:-15~60℃MPPT
Working conditions & fault code on LED screen
Auto Start & Stop
Soft start & frequency conversion
Industrial Applications for SIVC DC Solar Centrifugal Water Pump
• Transfer clean water or other water-like liquids with similar chemical properties
• Farm irrigation and domestic watering in areas without electricity
• Off-grid solar irrigation system
