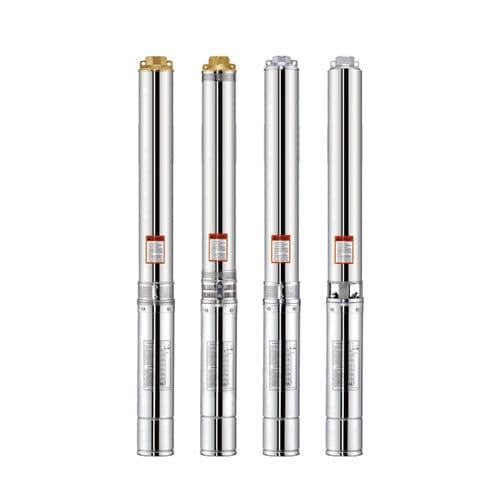

Solar-powered pump 4VSD/4VSE/4VSS/4VSA seriesimpellerwatermotor-driven
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- motor-driven
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, agriculture, for deep well
- Applications
- irrigation
- Material
- stainless steel, cast iron
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380-415V
- Other characteristics
- solar-powered
- Flow
Max.: 27 m³/h
(953.496 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Power
Max.: 4 kW
(5.44 hp)Min.: 0.55 kW
(0.75 hp)- Fluid temperature
35 °C
(95 °F)- Length
Max.: 2,966 mm
(117 in)Min.: 794 mm
(31 in)- Weight
Max.: 41.8 kg
(92.15 lb)Min.: 10.8 kg
(23.81 lb)
Description
4VSD/4VSE/4VSS/4VSA Series AC Solar Deep Well Submersible Pump Overview
1. Operating conditions
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Minimum well diameter: 4"
2. Motor and Pump
Rewindable motor
Three-phase: 380-415V/50Hz
Pumps are designed by casing stressed
Curve tolerance according to lS0 9906
3. Options on request
Special mechanical seal
Other voltages or frequency 60Hz
4. Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
