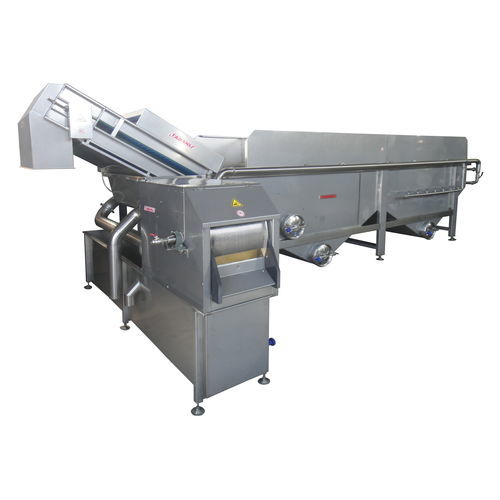

Vegetable washing machine TUTW02

beltrinsingimmersion

Perfect for spinach washing by turbulenced vortex nozzle system and green bean washing by flotation nozzle system and almost all vegetables with special pump and valve arranges. 2,5 tons/h of spinach and 5 tons/hr of green bean washing capacity. Construction made of AISI 304 stainless steel completely. Main washer Tank; Length: 6m. x inside Width: 130cm. Total Washer volume: approx. 6500 liters + Filtering system tank volume: 850 liters Washer tank is crated two section. Totally 7 manhole lids on the system. Blower for aerating to water. Two Product Transfer drums on the washer. Perforated plates in the washer with Stone trap. Discharge conveyor with plastic modular belt width 105cm. Belt cleaning system with idle rotary cylindrical brush on discharge conveyor. Shower with fresh water after pool on discharge elevator. Water circulation pump made of stainless steel. Drum type external continue water filter system. Construction in AISI 304 Cr-Ni stainless steel. Belt drive motor +reducer, 380VAC, 50Hz, 3ph, 0,75kw. Product Transfer drums drive motor+reducers, two 380VAC, 50Hz, 3ph, 0,37kw. Blower drive motor, 380VAC, 50Hz, 3ph, 2,2kw. Water circulation pump drive motor, 380VAC, 50Hz, 3ph, 7,5kw. Drum type water filter drive motor+reducer, 380VAC, 50Hz, 3ph, 0,37kw. Internal Electrical control panel included.
