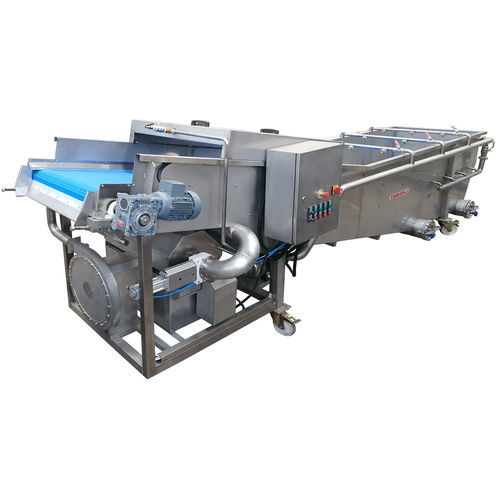

Vegetable washing machine TUTW01
for fruitrinsingdrum

Add to favorites

Compare this product

Go to the TABANLI MAKINA SAN VE TIC LTD STI website for more information

Characteristics

Food product

for vegetables, for fruit

Other characteristics

rinsing, drum, immersion, spraying, with belt conveyor, flotation, destoning, high pressure air blowing

Productivity

Min.: 1 t/h
(1 lb/s)

Max.: 2 t/h
(1 lb/s)

Description

for washing of almost every kind of fruit and vegetables and particularly leaf ones such as spinach, parsley, etc. • - Length: 4,7m. x Belt Width: 70cm. • - Blower for aerating to water. • - modular plastic belt discharge conveyor. • - Shower with fresh water after pool on discharge conveyor. • - Water circulation pump made of stainless steel and rotary drum type water filter system. • - Construction in AISI 304 Cr-Ni stainless steel. • - Belt drive motoreducer, 380 VAC, 50 Hz., 3 phases, 0,55 kw. • - Blower drive motor, 380 VAC, 50 Hz., 3 phases, 1,5 kw. • - Water circulation pump drive motor, 380 V, 50 Hz., 3 phases, 1,5 kw. • - Drum Filter driven mıotoreducer; 380 V, 50 Hz., 3 phases, 0,18 kw. • - Electrical panel mounted. • - Overall dimensions approx. 505cm.*110cm.* 170cm. (LxWxH) • - Net Weight - : approx. 700kg.
