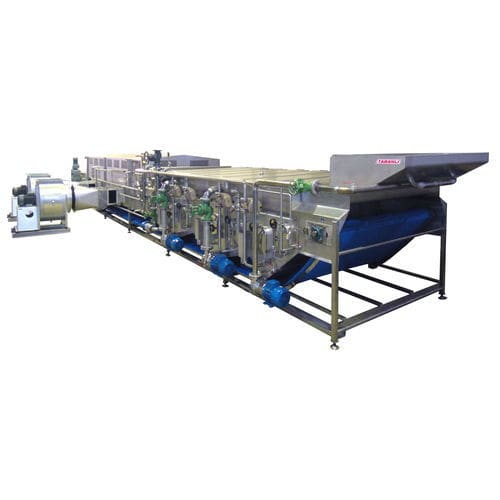

Vegetable blancher TBBC02
for the food industrysteamcontinuous water cooling

vegetable blancher
vegetable blancher
Add to favorites
Compare this product


Characteristics

Food product
vegetable
Options
for the food industry, steam, continuous water cooling, hot water

Description

It is used for particularly frozen food industry. They have multistage heating levels on the blanching section, also blancher and Cooler in same body. They are so hygienic and have no microbiology problems. There is radial air suction fans for increasing up cooling capacity of water on the cooling section. So, water consumption is reduced. Product discharge temparature 15-18C of degrees can be provided by fresh water+air cooling. Good cooled product improves IQF capacity and efficiency. Steam moving is reduced from blanching section to cooling section by water curtain crating between these sections. Belt is special for purposing of blanchers that includes sideguards, st. steel tension plates and st. steel rods. Plastic segments made of PP with high opening area. Blanching water is pumping by hygienic st. steel pumps and sprays special nozzles above product. Direct steam injected to the each blanching water tanks separately and all media by proportional control valves. All blanching levels` and medias temperatures are set to the PID controllers on the panel lid separately. Machine is PLC controlled and has an electrical control cabinet. Blanching time can be adjusted variable between 90sec. and 4min. PLC controls tank water filling-level, belt washing, temperatures, starting, belt speed, blanching time etc. automatically. There are lots of manhole lids on the tanks and under the belt for easily cleaning. So, This machine is the most hygienic blancher-cooler and it has no microbiology problem. It can be manufactured as various length and belt widths from 5 tons/hr to 15 tons/hr of pea grain capacities based.
