- Swivel caster
- Tai Sam Hardware Corporation

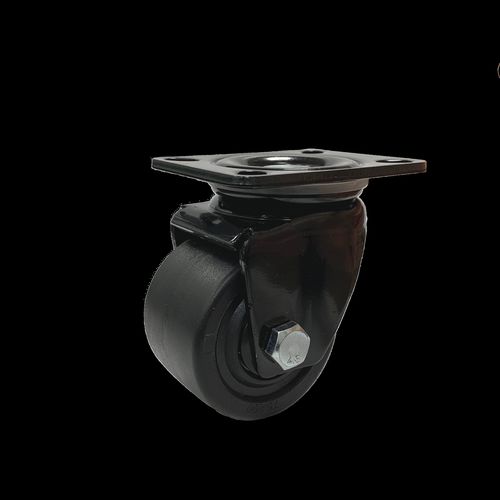

Swivel caster 3JPAHDbase platehigh load capacitylow-profile wheel
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, industrial, nylon, low-profile wheel
- Load capacity
600 kg
(1,323 lb)- Wheel diameter
75 mm
(2.953 in)- Tread width
50 mm
(1.97 in)
Description
Product name
Low-profile caster 3JPAHD
Overview
Wheel diameter x width: 75 (3") x 50 mm
Wheel/Housing material: Black nylon with ED coating (black)
Load capacity: 600 kg
Plate size: 101.5 x 82.5 mm
Bolt hole spacing: 76.5 x 56.5 mm
Mounting bolt diameter: 11 mm
Overall height: 108 mm
Rotation radius: 68 mm
Bearing type: 6202 x 2
Applications
Suitable for high-load equipment, industrial system cabinets, automation equipment and precision testing instruments.
Compliance & ordering
RoHS compliant. Specify model 3JPAHD and required quantity when ordering.
Technical specifications
Low-profile caster 3JPAHD
Overview
Wheel diameter x width: 75 (3") x 50 mm
Wheel/Housing material: Black nylon with ED coating (black)
Load capacity: 600 kg
Plate size: 101.5 x 82.5 mm
Bolt hole spacing: 76.5 x 56.5 mm
Mounting bolt diameter: 11 mm
Overall height: 108 mm
Rotation radius: 68 mm
Bearing type: 6202 x 2
Applications
Suitable for high-load equipment, industrial system cabinets, automation equipment and precision testing instruments.
Compliance & ordering
RoHS compliant. Specify model 3JPAHD and required quantity when ordering.
Technical specifications
- Model: 3JPAHD
- Wheel diameter x width: 75 (3") x 50 mm
- Wheel / housing material: Black nylon with ED coating (black)
- Load capacity: 600 kg
- Plate size: 101.5 x 82.5 mm
- Bolt hole spacing: 76.5 x 56.5 mm
- Mounting bolt diameter: 11 mm
- Overall height: 108 mm
- Rotation radius: 68 mm
- Bearing type: 6202 x 2
