- Swivel caster
- Tai Sam Hardware Corporation

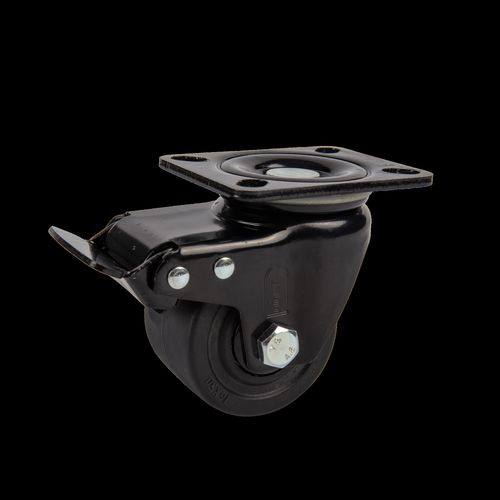

Swivel caster 3JPBHDbase platehigh load capacityheavy-duty
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, heavy-duty, for heavy loads, industrial, nylon, low-profile wheel
- Load capacity
600 kg
(1,323 lb)- Wheel diameter
75 mm
(2.953 in)- Tread width
50 mm
(1.97 in)
Description
Basic information
Diameter × Width: 75 mm × 50 mm (3″ × 2″). Load capacity: 600 kg. Model: 3JPBHD.
Product details
Wheel and housing: black nylon with ED coating (black). Plate size: 101.5 × 82.5 mm. Bolt hole spacing: 76.5 × 56.5 mm. Mounting bolt diameter: 11 mm. Overall height: 108 mm. Rotation radius: 108 mm. Bearing: 6202 × 2. Low-profile design minimizes equipment clearance while supporting high loads.
Order instructions & compliance
RoHS compliant. When ordering, specify model 3JPBHD and verify mounting bolt diameter and hole spacing to match the application. Suitable for heavy-load equipment, industrial system cabinets, automation systems and precision testing instruments.
Technical specifications
Diameter × Width: 75 mm × 50 mm (3″ × 2″). Load capacity: 600 kg. Model: 3JPBHD.
Product details
Wheel and housing: black nylon with ED coating (black). Plate size: 101.5 × 82.5 mm. Bolt hole spacing: 76.5 × 56.5 mm. Mounting bolt diameter: 11 mm. Overall height: 108 mm. Rotation radius: 108 mm. Bearing: 6202 × 2. Low-profile design minimizes equipment clearance while supporting high loads.
Order instructions & compliance
RoHS compliant. When ordering, specify model 3JPBHD and verify mounting bolt diameter and hole spacing to match the application. Suitable for heavy-load equipment, industrial system cabinets, automation systems and precision testing instruments.
Technical specifications
- Model: 3JPBHD
- Diameter × Width: 75 mm (3”) × 50 mm
- Wheel / Housing Material: Black Nylon with ED coating (Black)
- Load Capacity: 600 kg
- Size of Plate: 101.5 × 82.5 mm
- Bolt Hole Spacing: 76.5 × 56.5 mm
- Mounting Bolt Diameter: 11 mm
- Height: 108 mm
- Rotation Radius: 108 mm
- Bearing Type: 6202 × 2
- Compliance: RoHS Compliant
