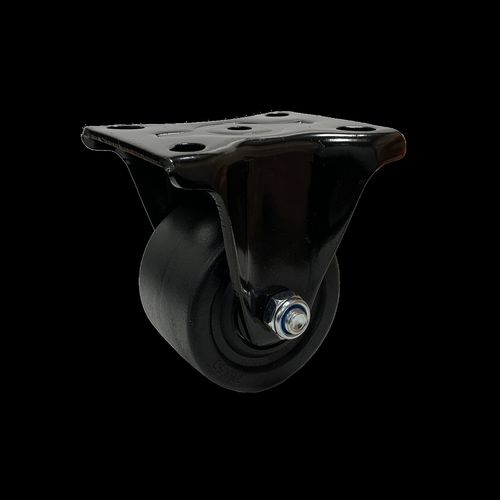

Base plate caster 3JPCHDfixedhigh load capacityheavy-duty
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, heavy-duty, nylon, low-profile wheel
- Load capacity
600 kg
(1,323 lb)- Wheel diameter
75 mm
(2.953 in)- Tread width
50 mm
(1.97 in)
Description
Product Overview
Low-profile heavy-duty caster designed for high-load industrial equipment and installations where reduced clearance is required. Wheel and housing are black nylon with an ED black coating for surface protection. Rated for 600 kg per caster and fitted with dual 6202 bearings for improved load stability.
ORDER INSTRUCTIONS
RoHS compliant. When ordering, specify model 3JPCHD and required quantity. For availability, lead time or custom mounting requirements (alternative bolt patterns, finishes or assemblies), contact your supplier or sales representative.
Technical specifications
Low-profile heavy-duty caster designed for high-load industrial equipment and installations where reduced clearance is required. Wheel and housing are black nylon with an ED black coating for surface protection. Rated for 600 kg per caster and fitted with dual 6202 bearings for improved load stability.
ORDER INSTRUCTIONS
RoHS compliant. When ordering, specify model 3JPCHD and required quantity. For availability, lead time or custom mounting requirements (alternative bolt patterns, finishes or assemblies), contact your supplier or sales representative.
Technical specifications
- Model: 3JPCHD
- Wheel diameter × width: 75 mm (3") × 50 mm
- Wheel/Housing material: Black nylon with ED black coating
- Load capacity: 600 kg
- Plate size: 101.5 × 82.5 mm
- Bolt hole spacing: 76.5 × 56.5 mm
- Mounting bolt diameter: 11 mm
- Overall height: 108 mm
- Bearing type: 6202 × 2
- Compliance: RoHS
