Stainless steel slide SL-X-SS
telescopicdrawer

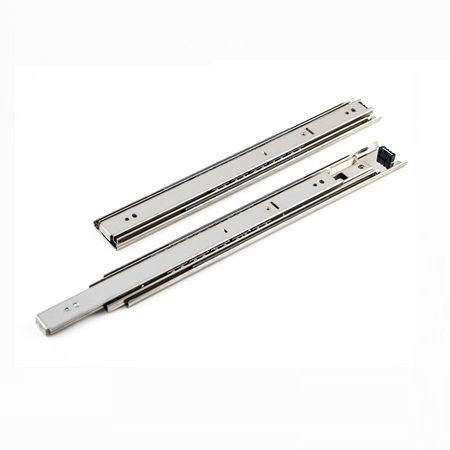

Stainless steel slide - SL-X-SS - Tai Sam Hardware Corporation - telescopic / drawer
Stainless steel slide - SL-X-SS - Tai Sam Hardware Corporation - telescopic / drawer
Add to favorites
Compare this product
Go to the Tai Sam Hardware Corporation website for more information

Characteristics

Extension
telescopic
Applications
drawer
Other characteristics
stainless steel
Load

Max.: 80 kg
(176.4 lb)

Min.: 18 kg
(39.7 lb)

Length

Max.: 550 mm
(21.7 in)

Min.: 250 mm
(9.8 in)

Description

Product name
Linear slide SL-X-SS

Material
SUS304 stainless steel

Product details
Unit: mm

  • SL-10"-SUS — Travel: 254 mm; Length: 250 mm; Dimension E: 192 mm
  • SL-12"-SUS — Travel: 305 mm; Length: 300 mm; Dimension E: 242 mm
  • SL-14"-SUS — Travel: 356 mm; Length: 350 mm; Dimension E: 292 mm
  • SL-16"-SUS — Travel: 406 mm; Length: 400 mm; Dimension E: 342 mm
  • SL-18"-SUS — Travel: 457 mm; Length: 450 mm; Dimension E: 392 mm
  • SL-20"-SUS — Travel: 508 mm; Length: 500 mm; Dimension E: 442 mm
  • SL-22"-SUS — Travel: 559 mm; Length: 550 mm; Dimension E: 492 mm
  • Other dimensions (A1, A, B, C, D, F, G, H): see product table; several cells marked as "X" where individual values are not listed.


Technical specifications
  • Main body material: SUS304
  • Unit: mm
  • Available item numbers: SL-10"-SUS; SL-12"-SUS; SL-14"-SUS; SL-16"-SUS; SL-18"-SUS; SL-20"-SUS; SL-22"-SUS
  • Travel (by model): SL-10"-SUS = 254 mm; SL-12"-SUS = 305 mm; SL-14"-SUS = 356 mm; SL-16"-SUS = 406 mm; SL-18"-SUS = 457 mm; SL-20"-SUS = 508 mm; SL-22"-SUS = 559 mm
  • Length (by model): SL-10"-SUS = 250 mm; SL-12"-SUS = 300 mm; SL-14"-SUS = 350 mm; SL-16"-SUS = 400 mm; SL-18"-SUS = 450 mm; SL-20"-SUS = 500 mm; SL-22"-SUS = 550 mm
  • Selected dimension E (by model): SL-10"-SUS = 192 mm; SL-12"-SUS = 242 mm; SL-14"-SUS = 292 mm; SL-16"-SUS = 342 mm; SL-18"-SUS = 392 mm; SL-20"-SUS = 442 mm; SL-22"-SUS = 492 mm
  • Other dimensions (A1, A, B, C, D, F, G, H): refer to product table; many entries marked "X".
