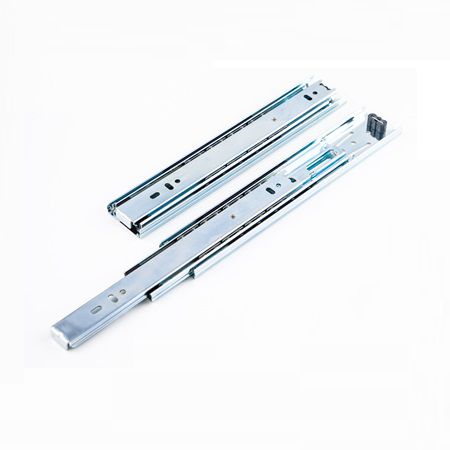

Telescopic slide SL-Xdrawerzinc-plated steelsteel
Add to favorites
Compare this product
Characteristics
- Extension
- telescopic
- Applications
- drawer
- Other characteristics
- steel, zinc-plated steel
- Load
Max.: 80 kg
(176.4 lb)Min.: 18 kg
(39.7 lb)- Stroke
Max.: 600 mm
(23.622 in)Min.: 250 mm
(9.843 in)
Description
PRODUCT NAME
PRODUCT DETAILS
Material (Main Body): STEEL
Surface Treatment (Main Body): Zinc plated
DIMENSIONS TABLE (unit: mm)
Itcm No.; Travel; A1; B1; A; B; C; D; E; Load Rating / Kg / pair
10": 250; 250; 250; 96; -; -; 169.4; -; 80
12": 300; 300; 300; 160; -; -; 96; 128; 70
14": 350; 350; 350; 160; -; -; 128; 128; 60
16": 400; 400; 400; 160; 64; -; 128; 192; 50
18": 450; 450; 450; 160; 128; -; 160; 192; 45
20": 500; 500; 500; 160; 128; 64; 192; 224; 35
22": 550; 550; 550; 160; 128; 64; 224; 224; 25
24": 600; 600; 600; 160; 128; 128; 256; 256; 18
ADDITIONAL INFORMATION
Unit: mm
SPECIFICATIONS
- Steel Slide SL-X
PRODUCT DETAILS
Material (Main Body): STEEL
Surface Treatment (Main Body): Zinc plated
DIMENSIONS TABLE (unit: mm)
Itcm No.; Travel; A1; B1; A; B; C; D; E; Load Rating / Kg / pair
10": 250; 250; 250; 96; -; -; 169.4; -; 80
12": 300; 300; 300; 160; -; -; 96; 128; 70
14": 350; 350; 350; 160; -; -; 128; 128; 60
16": 400; 400; 400; 160; 64; -; 128; 192; 50
18": 450; 450; 450; 160; 128; -; 160; 192; 45
20": 500; 500; 500; 160; 128; 64; 192; 224; 35
22": 550; 550; 550; 160; 128; 64; 224; 224; 25
24": 600; 600; 600; 160; 128; 128; 256; 256; 18
ADDITIONAL INFORMATION
Unit: mm
SPECIFICATIONS
- Model: Steel Slide SL-X
- Material (Main Body): STEEL
- Surface Treatment (Main Body): Zinc plated
- Available travel lengths: 250 mm (10"), 300 mm (12"), 350 mm (14"), 400 mm (16"), 450 mm (18"), 500 mm (20"), 550 mm (22"), 600 mm (24")
- Load rating per pair: 80 kg (10"), 70 kg (12"), 60 kg (14"), 50 kg (16"), 45 kg (18"), 35 kg (20"), 25 kg (22"), 18 kg (24")
- Table fields provided: Itcm No., Travel, A1, B1, A, B, C, D, E, Load Rating (Kg / pair)
