Electric air heater unit TH series

ACwall-mountedcustom-made

Product overview

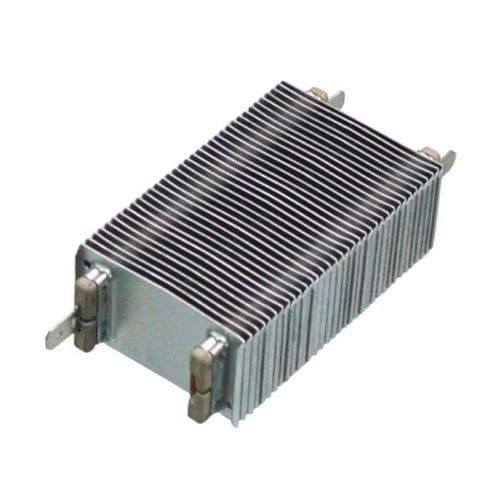

This newly designed TH type PTC air heater is available with two tube pitches: standard 31 mm and optional 25 mm for special designs. The PTC heat output is regulated by the applied airflow; higher airflow increases heat output and power (W). Dimensional drawings and part-number diagrams are provided.

Available specifications / sections

• TH Type 200V~240V specifications
• TH Type 100V~120V specifications
• TH Type accessories (e.g. mounting frame MHF-90)

3D models
Interactive 3D viewers are embedded on the product page for TH Type and THW Type; hover to preview the 3D models.

Part numbering
Part-number examples and conventions are provided for TH Type. Key notes:

• PTC FIN PITCH (TH-XXXXN): Power (W) in the specification tables is based on PTC air heaters with fin pitch 2.0 mm (denoted 'N').
• PTC INSULATION (TH-XXXXN-XXXS): Power (W) in the tables is based on single insulation ('S'). Double insulation ('D') typically increases price by ~20–30% and reduces power by ~10%. Double-insulated units have no electrode potential on the fins and are suitable where contact with conductive materials, high humidity, shock resistance, or higher stability (e.g. automotive) is required.

Notes on standard models and customization

• Items highlighted in the specification tables are standard models with shorter delivery times and more economical pricing.
• Customized wattage, length and specifications can be designed for large-quantity orders.

Accessories
Temperature-resistant plastic mounting frame that holds the PTC heating element. Model: MHF-90 (suitable for all lengths and models). Part-number conventions for accessory-only and assembled options are provided.

Technical specifications

• Manufacturer: KLC Corporation
• Model / series: TH Type
• Tube pitches: standard 31 mm; optional 25 mm for special designs
• Heat output regulation: dependent on airflow; higher airflow increases heat output and wattage
• Fin pitch reference: 2.0 mm (denoted 'N') — basis for power ratings
• Insulation options: Single (S) — baseline; Double (D) — ~20–30% higher price, ~10% lower power, eliminates electrode potential on fins
• Voltage ranges: specification tables for 200V–240V and 100V–120V
• Accessories: Mounting frame MHF-90 (temperature-resistant plastic); part-number formats provided
• Part-numbering examples indicate fin pitch, insulation type and accessory assembly details
