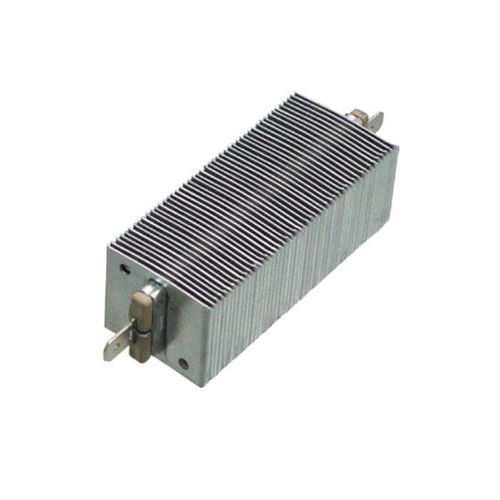

Electric air heater unit OH (w) series

wall-mounted

Product Overview
The OH Type PTC air heaters provide airflow-dependent heat output: increasing airflow raises heat output and electrical power. Models are available for two voltage ranges and are supplied with specification tables and 3D previews to assist selection.

Available Resources

• OH Type 200V~240V specifications (table)
• OH Type 100V~120V specifications (table)
• OH Type accessories and part-number examples
• PTC Air Heater datasheet (PDF) and 3D model viewer

Part Numbering & Notes

• PTC FIN PITCH (format OH-XXXXM): Power (W) values in the specification tables are referenced to fin pitch 1.68 mm (code M).
• PTC INSULATION (format OH-XXXXM-XXXS / -XXXD): Tables are based on Single Insulation (S). Double Insulation (D) characteristics:
  • Price for D models is typically 20–30% higher than S models.
  • Power (W) for D models is approximately 10% lower than S models.
  • D models have no electrode potential on fins and are suited for contact with conductive materials, high-humidity environments, shock-resistant requirements, or applications needing higher stability/quality (e.g., automotive).

Specifications (200V~240V)
Specification tables for 200V~240V models are provided on the product page. Items highlighted in the tables denote standard models with shorter lead times and more economical pricing. Custom wattage, length and other specifications can be designed for large-quantity orders. Power values assume fin pitch 1.68 mm (M) and Single Insulation (S).

Specifications (100V~120V)
Specification tables for 100V~120V models are provided on the product page. Items highlighted in the tables denote standard models with shorter lead times and more economical pricing. Custom wattage, length and other specifications can be designed for large-quantity orders. Power values assume fin pitch 1.68 mm (M) and Single Insulation (S).

Accessory

• Temperature-resistant plastic mounting frame (example: MHF-90, L-shaped) that securely holds the PTC heating element. Example assembly part-number format: OH-XXXM-XXX2.

Other Notes

• 3D model viewers are available for OH Type and OHW Type for geometry preview.
• Part-number diagrams and dimensional drawings are provided on the product page to support integration and panel/layout design.

Technical characteristics / Specifications

• Product type: PTC Air Heaters – OH Type (OH series)
• Manufacturer: KLC Corporation
• Voltage ranges: 100V~120V and 200V~240V (separate specification tables)
• Power behavior: Heat output and wattage increase with applied airflow
• Reference fin pitch for power ratings: 1.68 mm (M)
• Insulation options: Single Insulation (S) — reference for tables; Double Insulation (D) — ≈10% lower power, ≈20–30% higher price, no electrode potential on fins
• Standard models indicated in tables (shorter lead times)
• Customization: Wattage, length and specifications customizable for large-quantity orders
• Accessory: MHF-90 mounting frame (temperature-resistant plastic, L-shaped)
• Resources: Dimensional drawings, part-numbering diagrams, PDF datasheet and 3D models available on product page
